Quick Code: BB-401910

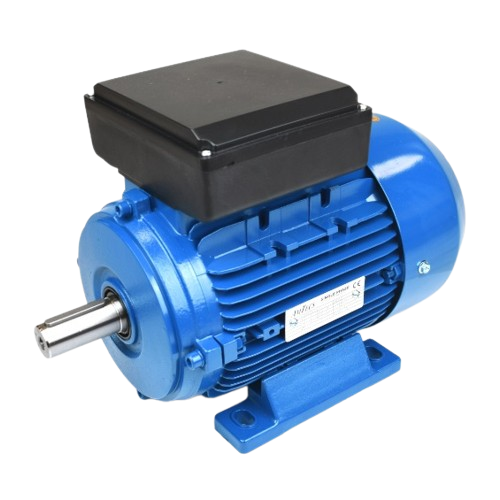

Amtecs IE1 0.55kW 4 Pole Single Phase Perm Cap B3 Foot Mount Electric Motor, 80 Frame
Also Try
Flange Mounted Electric Motors (B5)
Face Mounted Electric Motors (B14)
Foot & Face Mounted Electric Motors (B34)
Foot & Flange Mounted Electric Motors (B35)
Buy Now
Product Specification
Brand
Amtecs
Mounting
B3 Foot
Output Rating (hp)
0.75
Output Rating (kW)
0.55
Speed
1500rpm
Reference
28114055R
Quick Order Code
BB-401910
Product Description
This range of aluminium single phase running capacitor multi-mount motors is suitable for many different industrial applications. The running capacitor design is suitable for low starting torque applications such as fans. The multi-mount design enables the feet to be removed or moved to provide left, right or top terminal box configurations. Lower starting torque 0.3 - 0.7 times the rated torque.
ApplicationsKey Features
