Quick Code: BB-141716

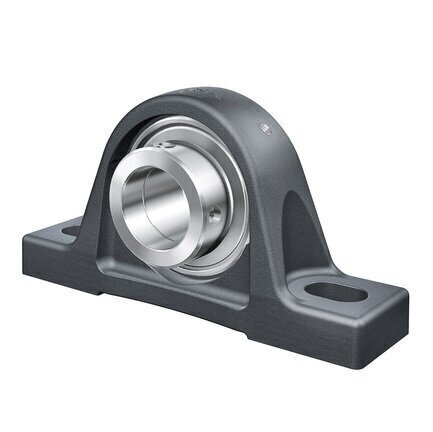

PASE12 12mm INA Pillow Block Bearing

£23.73 exc VAT (£28.48 inc VAT)
In Stock   Free Delivery Available   Next Day Order by 4pm
Buy Now
Qty:
Product Specification
Alternative Part Number
PASE12-XL; PASE12XL; PASE12N
Bolt Hole Centre (J)
95mm
Bore Size (d)
12mm
Brand
INA
Height (H2)
57mm
Housing Width (A)
30mm
RHP Equivalent
NP12EC
Total Length (L)
125mm
Reference
PASE12
Quick Order Code
BB-141716
Product Description
PASE12 12mm INA Pillow Block Bearing

Normal duty pillow/plummer block bearing unit complete with radial insert ball bearing with eccentric locking collar and P seals. The cast iron housing includes a grease nipple for re-lubrication.

The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.

Sizes (see diagram below):

d 12 mm
L 125 mm
H2 57 mm
A 30 mm
A1 18 mm
B1 28,6 mm
d3 max 28,4 mm
H 30,2 mm
H1 10 mm
J 95 mm
N 11 mm
N1 19 mm
Q M6
S1 22,1 mm
m 0,46 kg Mass
Cr 10100 N Basic dynamic load rating, radial
C0r 4750 N Basic static load rating, radial
ASE03 Designation of housing
GRAE12-XL-NPP-B Designation of bearing
