Quick Code: BB-530004

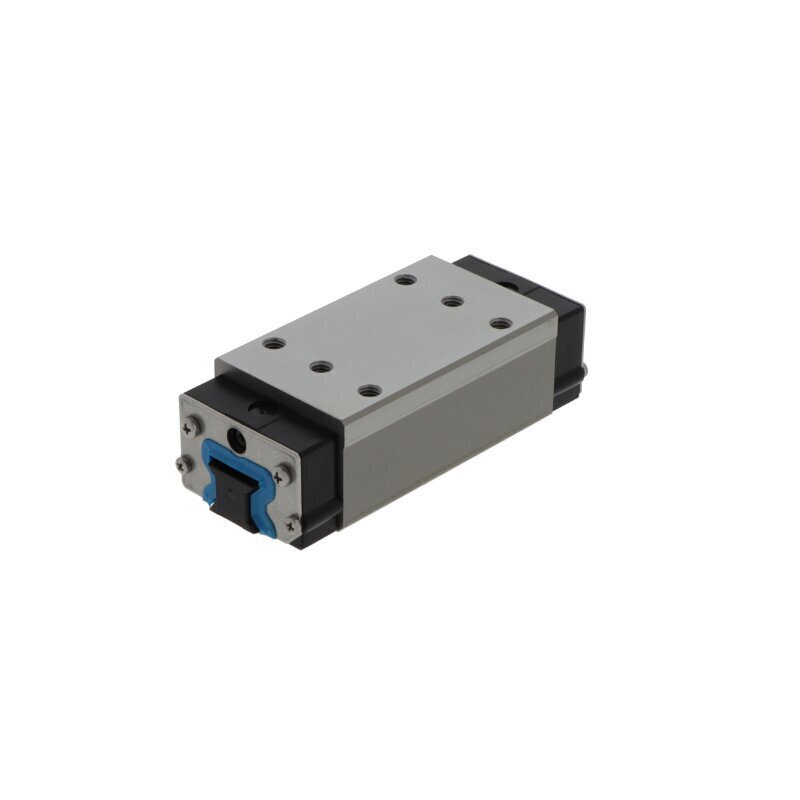

MRW55-D-G1-V3 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
High preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
55 series
Temperature range
-40 to +80 °C
Tolerance class
G1
Type of rolling elements
Rollers
Version
High, narrow, short type
Reference
MRW55DG1V3
Additional Reference:
10174512
Quick Order Code
BB-530004
Product Description
The MRW55-D-G1-V3 is a precision block carriage from Schneeberger's versatile 55 series, engineered for demanding industrial applications requiring exceptional accuracy, robust load capacity, and reliable linear motion performance.
Design & Construction
- Design Type: Block carriage with high, narrow, short configuration optimized for space-constrained installations while maintaining superior performance
- Series: 55 series - versatile platform designed for medium to heavy-duty applications requiring excellent load handling capabilities
- Rolling Elements: Four-row roller configuration for optimal load distribution, enhanced stability, and consistent smooth operation
- Materials: Durable steel and plastic construction for exceptional longevity, reliability, and performance in challenging industrial environments
- Ball Chain: Supplied without ball chain for flexible integration into custom linear motion systems
Performance Specifications
- Tolerance Class: G1 for ultra-high precision positioning and exceptional repeatability
- Preload: High preload setting engineered for precision maintenance, enhanced rigidity, and superior accuracy in demanding applications
- Temperature Range: -40°C to +80°C, suitable for extreme environmental conditions and diverse industrial settings
Sealing & Maintenance
- Sealing System: Comprehensive protection featuring end seals, sealing strips, and inner seals to effectively guard against dust and contamination, extending operational life
- Lubrication: Can be relubricated via integrated lubrication nipple for extended service life, reduced maintenance intervals, and optimal performance
Typical Applications
Ideal for high-precision CNC machinery, industrial automation systems, precision manufacturing equipment, material handling machinery, press systems, and applications where robust linear motion, tight tolerances, exceptional load capacity, and reliable performance across varied temperature ranges are essential requirements.
Brand: Schneeberger | Reference: MRW55DG1V3
