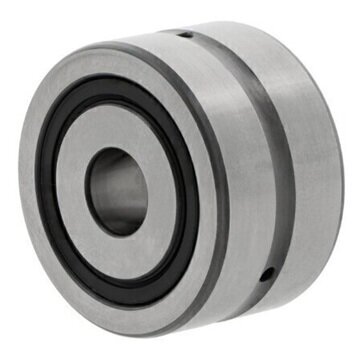

ZKLN1242-2RS-PE INA Axial Angular Contact Bearing 12mm x 42mm x 25mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
12mm
Outside Dia
42mm
Sealing Type
Sealed
Width
25mm
Reference
ZKLN1242-2RS-PE
Quick Order Code
BB-137566
Product Description
ZKLN1242-2RS-PE INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic operating conditions, particularly in screw drive applications where performance and reliability are critical. With dimensions of 12mm bore, 42mm outer diameter, and 25mm width, this compact bearing delivers exceptional precision in tight spaces.
Key Performance Features:
- 60 degree contact angle enables support of both radial forces and high axial forces simultaneously
- High accuracy and load carrying capacity for demanding applications
- High rigidity and low friction operation for superior efficiency
- Maintenance-free or low-maintenance design
- Double direction capability for multi-directional load support
Design & Sealing:
- Mounted in housing bore with outer ring axially located by cover
- Lip seals on both sides for enhanced protection against contamination
- PE designation indicates increased tolerances, suitable for applications where lower accuracy requirements are acceptable
Ideal Applications:
Perfect for screw drives, precision machinery, and industrial equipment requiring compact, reliable axial angular contact bearing solutions with balanced performance and cost-effectiveness.
