Quick Code: BB-515472

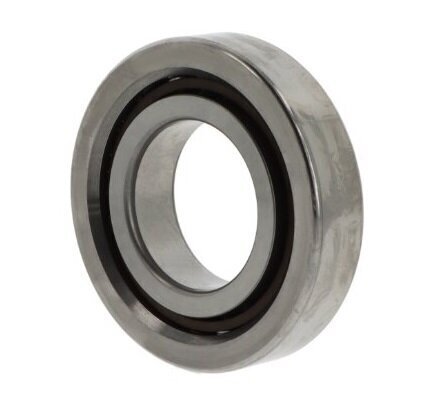

BSA206 CGA SKF Axial Angular Contact Ball Bearing 30mm x 62mm x 16mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
SKF
Cage
Polyamide cage
Contact angle
62 degree
Fixing
Without fixing holes
Inside Dia
30mm
Lubrication hole
Without lubrication groove
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
62mm
Product range
Single bearing
Sealing Type
Open
Temperature range
-20 to +120 °C
Tolerance class
Dimensional accuracy P4 or ABEC 7, running accuracy P2 or AB
Width
16mm
Reference
BSA206
Additional Reference:
10122189
Quick Order Code
BB-515472
Product Description
BSA206 CGA SKF Axial Angular Contact Ball Bearing
This precision axial angular contact bearing is engineered for dynamic applications requiring high accuracy, excellent load capacity, rigidity, and low-friction operation. With its 62 degree contact angle, the BSA206 delivers reliable performance in single-direction loading applications where controlled axial and radial force support is essential.
Key Performance Characteristics:
- 62 degree contact angle optimized for efficient axial and radial force distribution
- Single-direction bearing design for applications with unidirectional loading
- Open sealing design for minimal friction and maintenance-free operation in clean environments
- Polyamide cage construction for lightweight, reliable ball guidance
- Precision tolerance class P4 (ABEC 7) for high-accuracy applications with P2 (AB) running accuracy
Design & Installation:
- Direct housing bore mounting capability for flexible integration
- Standard bearing steel construction for durability and load-carrying performance
- No fixing holes or lubrication grooves for simplified design and installation
- Compact form factor: 30mm bore × 62mm outer diameter × 16mm width
Specifications:
- Bore Diameter: 30mm
- Outer Diameter: 62mm
- Width: 16mm
- Contact Angle: 62 degree
- Operating Direction: Single direction
- Sealing: Open design
- Cage Material: Polyamide
- Tolerance Class: P4 (ABEC 7) / P2 (AB)
- Temperature Range: -20 degreeC to +120 degreeC
- Manufacturer: SKF
Typical Applications:
Ideal for precision machinery, industrial equipment, machine tool spindles, and automation systems where single-direction axial and radial load support is required with high accuracy and minimal maintenance in controlled operating environments.
