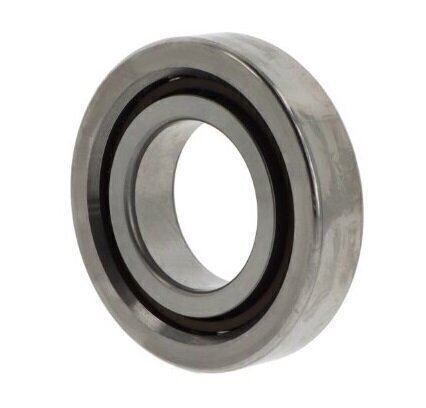

BSA201 CGA SKF Axial Angular Contact Ball Bearing 12mm x 32mm x 10mm
BSA201-CGA SKF Axial Angular Contact Ball Bearing
This compact axial angular contact bearing from SKF is engineered for precision applications requiring simultaneous support of radial and axial forces in space-constrained environments. With a 12mm bore, 32mm outer diameter, and 10mm width, the BSA201-CGA delivers reliable performance, high accuracy, and low-friction operation in single-direction loading applications.
Key Performance Features:
- 62 degree contact angle for efficient support of combined radial and axial forces
- Single-direction bearing design optimized for unidirectional loading
- High precision with P4 dimensional accuracy (ABEC 7) and P2 running accuracy for smooth operation
- Polyamide cage construction for lightweight, stable performance under dynamic conditions
- Superior accuracy and minimal friction for efficient power transmission
- Compact design ideal for space-optimized installations
Design & Construction:
- Bore Diameter: 12mm
- Outer Diameter: 32mm
- Width: 10mm
- Brand: SKF
- Sealing Type: Open design for applications with controlled environments
- Cage Material: Polyamide cage for durability and reduced weight
- Contact Angle: 62 degree
- Mounting: Without fixing holes for flexible installation options
- Material: Standard bearing steel for proven durability
- Lubrication: Without lubrication groove; external lubrication compatible
- Temperature Range: -20 degreeC to +120 degreeC for versatile operating environments
- Tolerance Class: P4 (ABEC 7) dimensional accuracy and P2 running accuracy
- Operating Direction: Single direction bearing
Ideal Applications:
The BSA201-CGA is particularly well-suited for precision ball screw assemblies, compact spindle mechanisms, miniature drive systems, automation equipment, and other high-precision rotating machinery requiring reliable axial and radial load capacity in confined spaces. The open sealing design makes it ideal for applications with controlled contamination environments or where external protection is provided by the installation design.
As part of the SKF precision bearing range, this bearing combines proven engineering excellence with reliability for applications demanding superior performance and accuracy in compact form factors.
