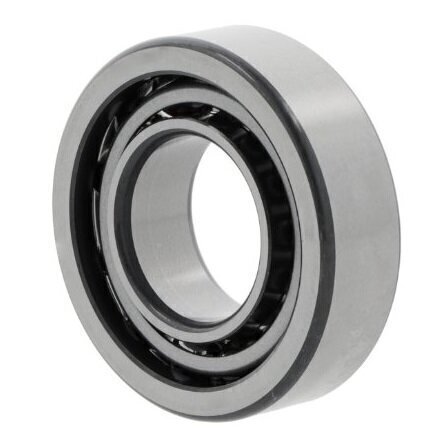

LJT1.1/8 NKE Single Row Angular Contact Ball Bearing 28.57mm x 63.5mm x 15.87mm
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
NKE
Cage
Sheet steel cage
Clearance
Normal radial clearance
Contact angle
35 degree
Inside Dia
28.58mm = 1.1/8inch
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
63.5mm = 2.1/2inch
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
15.88mm = 5/8inch
Reference
LJT1.1/8
Additional Reference:
10173245
Quick Order Code
BB-529768
Product Description
LJT1.1/8 NKE Single Row Angular Contact Ball Bearing
This precision single row angular contact ball bearing from NKE is engineered to handle combined radial and axial loads in demanding industrial applications. With compact dimensions of 28.57mm bore x 63.5mm outside diameter x 15.87mm width, it delivers reliable performance in high-speed, precision-focused mechanical systems requiring space-efficient bearing solutions.
Key Features:
- 35° Contact Angle: Optimized geometry for efficient handling of combined radial and axial loads in one direction
- Single Row Design: Compact configuration ideal for applications with space constraints and unidirectional axial load requirements
- Sheet Steel Cage: Durable ball-centred cage construction ensures stable operation and reliable performance
- Open Bearing Design: No seals for minimal friction and high-speed capability
- Standard Bearing Steel Construction: Premium material quality ensures durability and extended service life
- P0/PN2 (ABEC 1) Tolerance Class: Precision engineering for consistent, reliable performance
- Normal Radial Clearance: Optimized for standard applications and typical operating conditions
- NKE Quality: Engineered by a respected bearing manufacturer for proven reliability
Specifications:
- Bore Diameter: 28.57mm (1.1/8 inch)
- Outside Diameter: 63.5mm (2.1/2 inch)
- Width: 15.87mm (5/8 inch)
- Contact Angle: 35°
- Cage Type: Sheet steel
- Clearance: Normal radial clearance
- Seal Type: Open (None)
- Material: Standard bearing steel
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +150°C
- Arrangement: Standard version
- Reference Number: LJT1.1/8
- Manufacturer: NKE
Typical Applications:
- Small to medium-sized electric motors and industrial pumps
- Compact gearboxes and transmission systems
- Machine tool spindles and precision rotating equipment
- High-speed applications requiring compact bearing solutions
- Industrial machinery with space constraints
- Automotive and light industrial equipment
- Precision machinery requiring simultaneous radial and axial load support
Reference Number: LJT1.1/8
Brand: NKE
