Quick Code: BB-495521

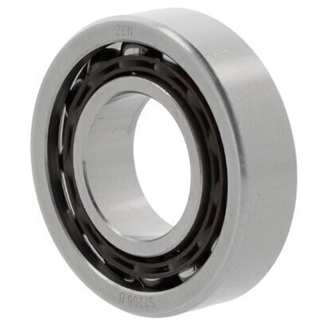

7213-BEP SKF Single Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
65mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
120mm
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
23mm
Reference
7213-BEP
Additional Reference:
10017248
Quick Order Code
BB-495521
Product Description
The 7213-BEP SKF Single Row Angular Contact Ball Bearing is a premium precision bearing designed for high-speed applications requiring simultaneous radial and axial load capacity. Manufactured by SKF, a leading global bearing supplier, this single row angular contact bearing delivers reliable performance across a wide range of industrial applications.
Specifications:
- Bore Diameter: 65mm
- Outer Diameter: 120mm
- Width: 23mm
- Contact Angle: 40 degrees
- Row Type: Single row
- Arrangement: Standard version
- Cage Material: Polyamide
- Radial Clearance: Normal
- Seal Type: Open bearing (no seal)
- Material: Standard bearing steel
- Outer Ring: Without flange or groove
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +120°C
Key Features:
- 40-degree contact angle optimized for combined radial and axial load handling
- Lightweight polyamide cage for reduced friction and improved speed capability
- Open design suitable for applications requiring minimal obstruction
- Normal radial clearance provides balanced performance across standard industrial applications
- P0/PN2 tolerance ensures high precision and repeatability
Typical Applications:
This bearing is ideal for use in gearboxes, electric motors, pumps, compressors, and other machinery requiring high-speed, precision operation with combined loading capabilities. The open design makes it particularly suitable for applications where lubrication management is handled separately.
