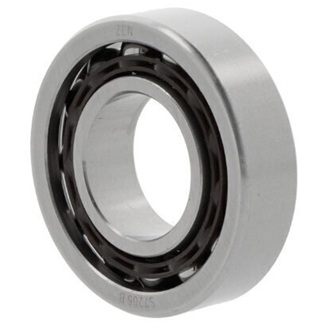

7205-BEP SKF Single Row Angular Contact Ball Bearing
Help Articles
Also Try
Tab Washers
Lock Nuts
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Product Specification
Arrangement
Standard version
Brand
SKF
Cage
Polyamide cage
Clearance
Normal radial clearance
Contact angle
40 degree
Inside Dia
25mm
Material
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
52mm
Row Type
Single
Seal
None, open bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
15mm
Reference
7205-BEP
Additional Reference:
10024358
Quick Order Code
BB-496206
Product Description
The 7205-BEP SKF Single Row Angular Contact Ball Bearing is a precision bearing designed for high-speed applications requiring simultaneous radial and axial load capacity. This standard version bearing combines reliability with performance, making it ideal for a wide range of industrial and mechanical applications.
Specifications:
- Brand: SKF
- Bore Diameter: 25mm
- Outer Diameter: 52mm
- Width: 15mm
- Row Type: Single Row
- Contact Angle: 40°
- Clearance: Normal radial clearance
- Cage Material: Polyamide
- Seal Type: Open bearing (unsealed)
- Material: Standard bearing steel
- Tolerance Class: P0/PN2 (ABEC 1)
- Temperature Range: -20°C to +120°C
- Outer Ring: Without flange or groove
Applications:
This bearing is suitable for use in gearboxes, electric motors, pumps, compressors, and other precision machinery where combined radial and axial loads are present. The open design allows for easy lubrication and makes it versatile for both horizontal and vertical mounting configurations.
Reference: 7205-BEP
