Quick Code: BB-504725

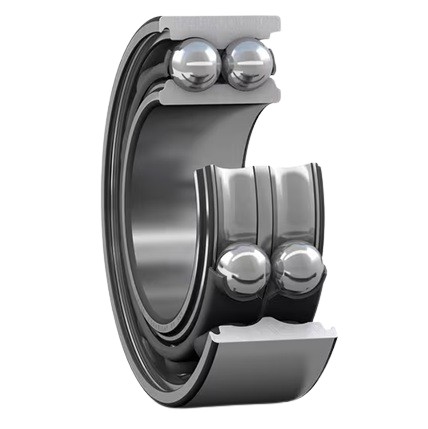

3220-A SKF Double Row Angular Contact Ball Bearing
The 3220-A SKF Double Row Angular Contact Ball Bearing is a robust precision bearing engineered for demanding applications requiring simultaneous radial and axial load capacity. Manufactured by SKF, a global leader in bearing technology, this double row angular contact bearing delivers exceptional performance and reliability in high-speed industrial environments.
Specifications:
- Bore Diameter: 100mm
- Outer Diameter: 180mm
- Width: 60.3mm
- Contact Angle: 30 degrees
- Row Type: Double row
- Arrangement: Standard version
- Cage Material: Sheet steel cage
- Radial Clearance: Normal
- Seal Type: Open bearing (no seal)
- Material: Standard bearing steel
- Outer Ring: Without flange or groove
- Tolerance Class: P0/PN2 (ABEC 1)
- Operating Temperature Range: -20°C to +150°C
Key Features:
- Double row configuration for superior combined radial and axial load handling capability
- 30-degree contact angle optimized for balanced load distribution and smooth operation
- Sheet steel cage construction ensures durability and stability in demanding conditions
- Open design suitable for applications requiring separate lubrication management
- Normal radial clearance provides excellent performance across standard industrial applications
- P0/PN2 tolerance class guarantees high precision and repeatability
- Extended temperature range from -20°C to +150°C enables operation in varied environments
Typical Applications:
This bearing is ideal for use in heavy-duty gearboxes, industrial pumps, compressors, spindle assemblies, and other machinery requiring high-speed, precision operation with substantial combined loading. The double row design makes it particularly suitable for applications demanding maximum load capacity and reliability, such as automotive transmissions, industrial motors, and specialized heavy equipment.
Why Choose SKF?
SKF is recognized worldwide as a leading bearing manufacturer renowned for exceptional quality standards and engineering excellence. The 3220-A delivers the superior durability and precision that professionals depend on for mission-critical applications.
Reference Number: 3220-A SKF
