1135-RPP5-15 Megadyne Isoran Metric Timing Belt (1135-5M-15)

Name: 1135-RPP5-15 Megadyne Isoran Metric Timing Belt (1135-5M-15)
Brand: Megadyne
SKU: 020430550598 (1135 RPP5 15)
Price: 18.17 GBP
Availability: InStock

Help Articles

Timing Belt Finder / Calculator
Determine which Timing Belt you require

Also Try

Z Belts (10mm x 6mm)

Thin Section Ball Bearings

Taper Bushes

5M Section Timing Pulley (5mm)

5M Taperlock Timing Pulley

Isoran RRP5 - 5M Section (5mm Pitch)

Buy Now

Qty:

Product Specification

Brand

Megadyne

Number of Teeth

227

Pitch Length

1135mm

Width

15mm

Reference

020430550598 (1135 RPP5 15)

Quick Order Code

BB-395558

Product Description

Please note that if the Megadyne brand is not in stock an equivalent quality brand will be sent.

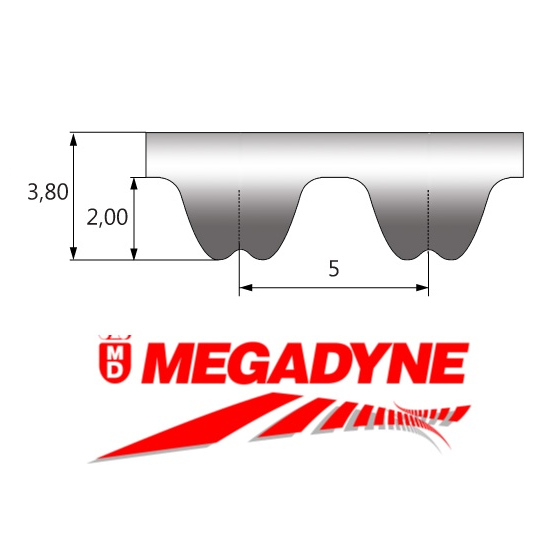

Isoran RPP is the classic type of Isoran transmission belt, made in chloroprene rubber and suited for a very wide range of applications. The parabolic profile of Isoran RPP has a progressive angle starting from the root of the tooth, up to the tip. This allows to have a taller tooth with the same pitch length. The groove on top permits a smoother engagement, a better meshing of the tooth with the pulley and less wear of the belts.

Main components

Body: The body is made from an innovative rubber compound, reinforced with a special fiber; hardness 74 ShA.

Cord: Continuous helically wound fiberglass cords form the tensile member of the belt

Cover: A wear-resistant nylon fabric with self-lubricant capability covers the teeth surface.

Key Features

Less noise

Less pre-tension

Higher transmittable torques

Improved resistance to tooth jump and to tooth shear

Isoran RPP belt working temperature - 25 deg C/+80 deg C

Others also ordered

1100-RPP5-15 Megadyne Isoran Metric Timing Be...

£14.51

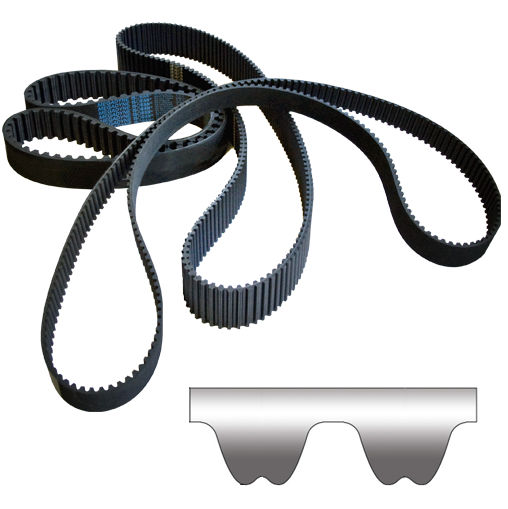

565-RPP5-15 Megadyne Isoran Metric Timing Bel...
