Metric Timing Belts HTD
5M Section (5mm Pitch)
Quick Code: BB-395738
1100-RPP5-5 Megadyne Isoran Metric Timing Belt (1100-5M-5)
Also Try
Z Belts (10mm x 6mm)
Thin Section Ball Bearings
Taper Bushes
5M Section Timing Pulley (5mm)
5M Taperlock Timing Pulley
Buy Now
Qty:
Product Specification
Brand
Megadyne
Number of Teeth
220
Pitch Length
1100mm
Width
5mm
Reference
110430550578 (1100 RPP5 5)
Quick Order Code
BB-395738
Product Description

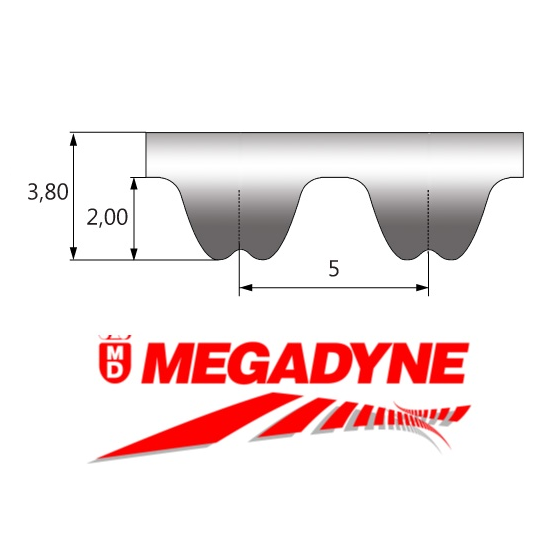

Please note that if the Megadyne brand is not in stock an equivalent quality brand will be sent.Isoran RPP is the classic type of Isoran transmission belt, made in chloroprene rubber and suited for a very wide range of applications. The parabolic profile of Isoran RPP has a progressive angle starting from the root of the tooth, up to the tip. This allows to have a taller tooth with the same pitch length. The groove on top permits a smoother engagement, a better meshing of the tooth with the pulley and less wear of the belts.
Main componentsKey Features
