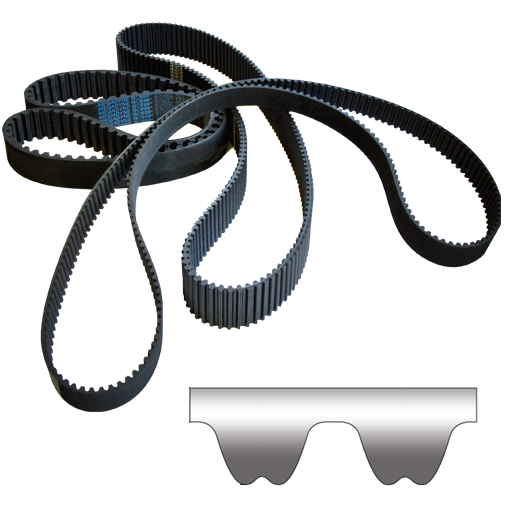

756-RPP3-15 Metric Timing Belt (756-3M-15)
Also Try
5M Section (5mm Pitch)
08B1 - 1/2inch Simplex Chain Sprockets
3M Section Timing Pulleys (3mm)
5M Section Timing Pulley (5mm)
8M Section (8mm Pitch)
Buy Now
Qty:
Product Specification
Brand
Megadyne
Number of Teeth
252
Pitch Length
756mm
Width
15mm
Reference
020430540666 (756 RPP3 15)
Quick Order Code
BB-395224
Product Description

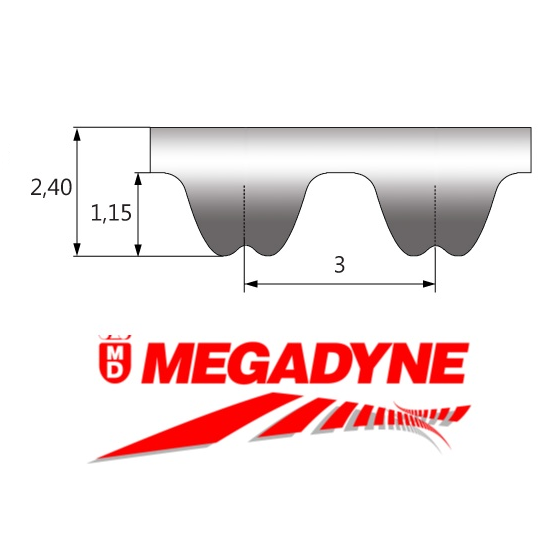

Please note that if the Megadyne brand is not in stock an equivalent quality brand will be sent.Isoran RPP is the classic type of Isoran transmission belt, made in chloroprene rubber and suited for a very wide range of applications. The parabolic profile of Isoran RPP has a progressive angle starting from the root of the tooth, up to the tip. This allows to have a taller tooth with the same pitch length. The groove on top permits a smoother engagement, a better meshing of the tooth with the pulley and less wear of the belts.
Main componentsKey Features
