1092-RPP14-70 Megadyne Isoran Metric Timing Belt (1092-14M-70)
Also Try
14M Taperlock Timing Pulley
8M Section (8mm Pitch)
5M Section (5mm Pitch)
Isoran RRP8 - 8M Section (8mm Pitch)
3M Section (3mm Pitch)
Buy Now
Qty:
Product Specification
Brand
Megadyne
Number of Teeth
78
Pitch Length
1092mm
Width
70mm
Reference
110430570272 (1092 RPP14 70)
Quick Order Code
BB-397138
Product Description

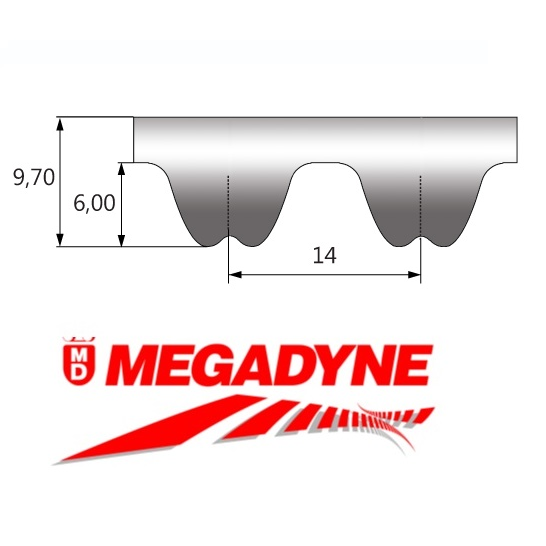

Please note that if the Megadyne brand is not in stock an equivalent quality brand will be sent.Isoran RPP is the classic type of Isoran transmission belt, made in chloroprene rubber and suited for a very wide range of applications. The parabolic profile of Isoran RPP has a progressive angle starting from the root of the tooth, up to the tip. This allows to have a taller tooth with the same pitch length. The groove on top permits a smoother engagement, a better meshing of the tooth with the pulley and less wear of the belts.
Main componentsKey Features
