Bearings Ball Joints Spring Retained & Lockable Ball Joints
Quick Code: BB-95647

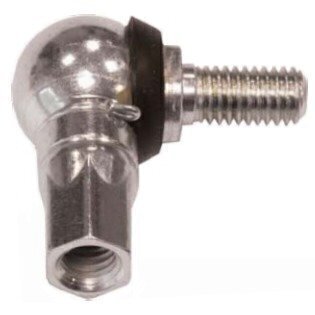

CMG5/1 Spring Retained & Lockable Ball Joint (Right Hand)

£3.54 exc VAT (£4.25 inc VAT) Show Bulk Discounts (5+)
5+: £3.19
10+: £3.01
25+: £2.83
50+: £2.66
In Stock   Free Delivery over £100   Next Day Order by 4pm
Buy Now
Qty:
Product Specification
A (mm)
10.2
B (mm)
9
Ball Diameter (mm)
8
Body Thread
M5x0.80
C Min (mm)
7.7
L1 (mm)
22
L2 (mm)
10
Stud A/F (mm)
7
Stud Thread
M5x0.80
Reference
CMG5/1
Brand
DUNLOP BALL JOINTS
Quick Order Code
BB-95647
Product Description
CMG5/1 Spring Retained & Lockable Ball Joint (Right Hand)

5-piece spring retained & lockable ball joints suitable for medium industrial/mechanical load applications, inner ring retains the ball stud while the safety clip prevents the ball stud from being removed. Pre-machined counter bore making them ideal for gas strut applications etc. Neoprene gaiter helps resist dirt contamination.

Materials
  • Body: Steel 230M07PB Zinc plated white & blue passivate (silver/clear)
  • Ball stud: Steel 212A42 case hardened and Zinc plated white & blue passivate (silver/clear)
  • Inner ring & safety clip: Spring steel to BS5216
  • Gaiter: Neoprene

    Possible Applications:
  • Industrial equipment
  • Agricultural equipment
  • Construction equipment
  • Lawn & garden equipment

    Features
  • Medium duty
  • Can be assembled in situ
  • Good wear resistance
  • Lubricated
  • Safety features

    Specification
  • ELV & RoHS compliant
