Bearings
Spherical Roller Bearings
SKF Spherical Roller
Quick Code: BB-524980

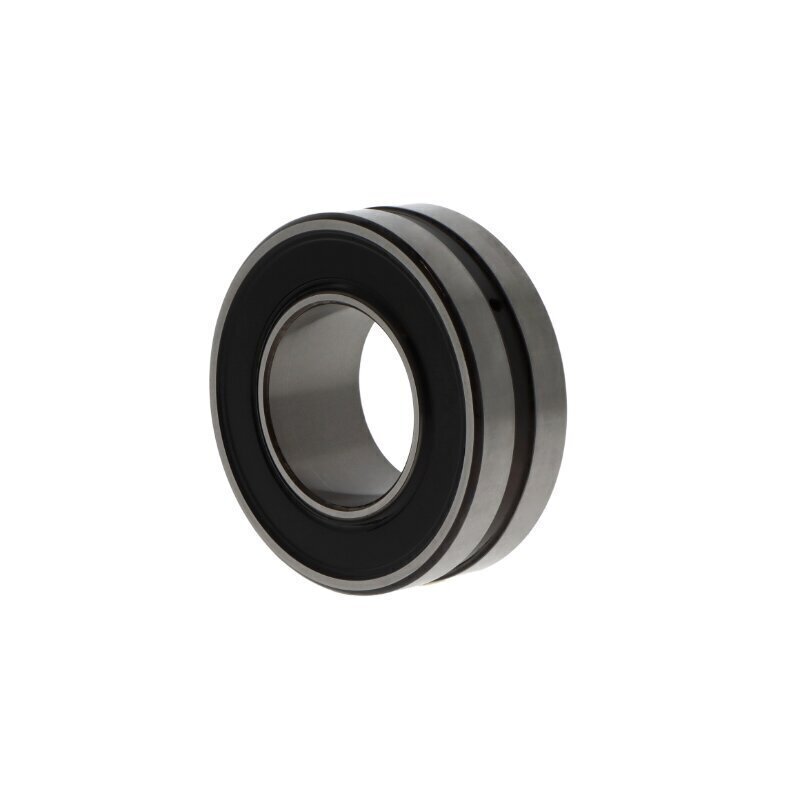

BS2-2216-2RSK/VT143 SKF Spherical Roller Bearing 80mm x 140mm x 40mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
80mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
140mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
40mm
Reference
BS2-2216-2RSK/VT143, BS2-2216-2RSKVT143
Additional Reference:
10150563
Brand
SKF
Quick Order Code
BB-524980
Product Description
This premium SKF spherical roller bearing is specifically designed for demanding industrial applications requiring superior sealing and lubrication performance. Pre-filled with SKF LGEP2 extreme pressure grease (25-35% filling), this bearing offers exceptional protection against contamination and optimal performance in challenging environments.
Key Technical Specifications
- Inside Diameter: 80mm
- Outside Diameter: 140mm
- Width: 40mm
- Bore Type: Tapered (1:12 ratio)
- Material: Standard bearing steel
- Temperature Range: -30°C to +80°C
- Tolerance Class: P0/PN2 / ABEC 1
Design Features
- Double-sided contact seals (2RS) for superior protection against contaminants
- Sheet steel cage construction for durability
- Lubrication groove with holes in outer ring for optimal lubricant distribution
- Pre-filled with high-performance LGEP2 extreme pressure grease
- Self-aligning capability to handle shaft misalignment
- Standard internal clearance for general applications
Common Applications
- Food and beverage processing equipment
- Material handling systems
- Agricultural machinery
- Conveyor systems in dusty environments
- Industrial fans and blowers
- Equipment exposed to water or contamination
This bearing is particularly well-suited for applications where protection against contamination is crucial and where relubrication may be difficult or infrequent. The combination of sealed design and pre-filled extreme pressure grease makes it ideal for harsh operating conditions.
Alternative References
- BS2-2216-2RSK/VT143
- BS2-2216-2RSKVT143
