Bearings
Ball Bearings
NTN Ball Bearings
Quick Code: BB-520781

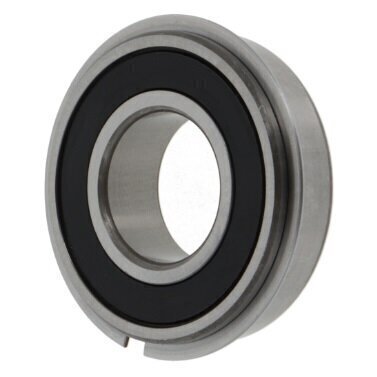

6309 LLBNR/2AS NTN Deep Groove Ball Bearing with Non-Contact Seals on Both Sides (NBR) 45mm x 100mm x 25mm
Also Try
SKF Ball Bearings
Dunlop & Budget Ball Bearings
Thin Section Ball Bearings
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
NTN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
45mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Ring groove with circlip on outer ring
Outside Dia
100mm
Sealing
Non-Contact Seals on Both Sides (NBR)
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
25mm
Reference
6309LLBNR/2AS
Additional Reference:
10136571
Quick Order Code
BB-520781
Product Description
6309 LLBNR/2AS NTN Deep Groove Ball Bearing
