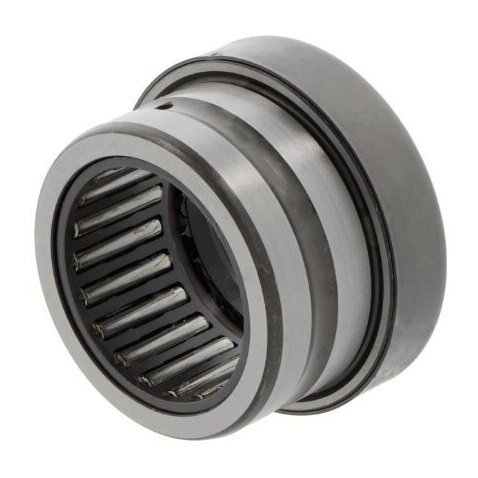

NKXR45Z-XL INA Needle Roller/Cylindrical Roller Bearing with End Cap
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
INA
Cage
Sheet steel cage
Inside Dia (Fw)
45mm
Interchangeable With
NBX4532Z
Lubrication
For grease lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
58mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
With end cap, axial component, single direction
Width (C)
32mm
Reference
NKXR45-Z-XL
Additional Reference:
10047466
Equivalent to:
NKXR45Z
Quick Order Code
BB-498500
Product Description
The NKXR45Z-XL INA Needle Roller/Cylindrical Roller Bearing with End Cap is a high-performance precision bearing designed for demanding industrial applications. This robust bearing combines exceptional mechanical properties with reliable performance across various mechanical systems.
Key Specifications:
- Brand: INA
- Inside Diameter: 45mm
- Outside Diameter: 58mm
- Width: 32mm
- Cage Material: Sheet steel
- Operating Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Lubrication: Designed for grease lubrication
- Material: Standard bearing steel
- Configuration: Single direction bearing with end cap and axial component
Typical Applications:
- Transmission systems
- Gearbox mechanisms
- Conveyor roller assemblies
- Automotive drivetrain components
- Industrial machinery
Compatible with NBX4532Z, this bearing offers excellent radial load capacity and precise performance in challenging mechanical environments. Its versatile design makes it suitable for applications requiring reliable rotational support and minimal friction.
