Bearings
Needle Roller Bearings
Combined Bearings
NKXR / NBX Series (Cylindrical Roller)
Quick Code: BB-498493

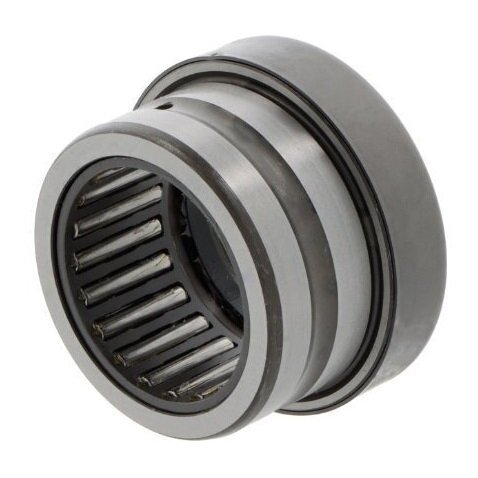

NKXR20Z-XL INA Needle Roller/Cylindrical Roller Bearing with End Cap
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Brand
INA
Cage
Sheet steel cage
Inside Dia (Fw)
20mm
Interchangeable With
NBX2030Z
Lubrication
For grease lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
30mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
With end cap, axial component, single direction
Width (C)
30mm
Reference
NKXR20-Z-XL
Additional Reference:
10047457
Equivalent to:
NKXR20Z
Quick Order Code
BB-498493
Product Description
The NKXR20Z-XL is a high-precision INA Needle Roller/Cylindrical Roller Bearing with end cap, engineered for reliable performance in demanding mechanical applications. This compact bearing combines robust design with versatile functionality for industrial and precision engineering environments.
Key Technical Specifications:
- Inside Diameter: 20mm
- Outside Diameter: 30mm
- Width: 30mm
- Cage Material: Sheet steel
- Bearing Material: Standard bearing steel
- Lubrication Type: Grease lubrication
- Tolerance Class: P0/PN2 / ABEC 1
- Temperature Range: -20°C to +120°C
- Orientation: Single direction bearing with axial component
- Interchangeable Model: NBX2030Z
Typical Applications:
- Transmission systems
- Industrial machinery
- Precision mechanical engineering
- Gearbox assemblies
- Conveyor system components
Featuring a sturdy sheet steel cage and designed for grease lubrication, this bearing offers exceptional reliability and performance in applications requiring precise radial and axial load support. The end cap design provides additional stability and protection, making it ideal for engineers seeking a robust bearing solution.
Engineered by INA, a trusted name in precision bearing technology.
