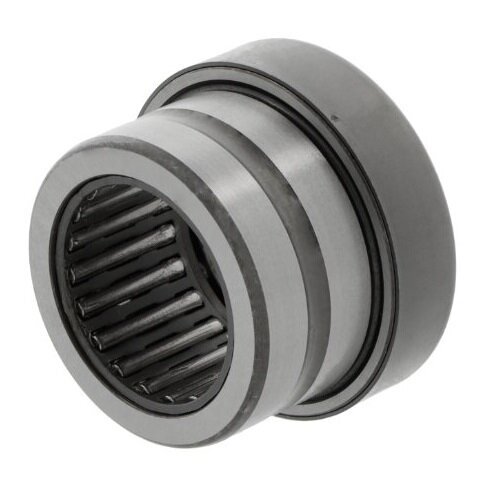

NKX25Z SKF Needle Roller/Thrust Ball Bearing with Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
SKF
Cage
Sheet steel cage
Inside Dia (Fw)
25mm
Lubrication
For grease lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
43.2mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Self-retaining
Width (C)
30mm
Reference
NKX25-Z
Additional Reference:
10226882
Equivalent to:
NKX25Z
Quick Order Code
BB-525883
Product Description
The NKX25Z SKF Needle Roller/Thrust Ball Bearing is a precision-engineered, compact bearing solution designed for complex mechanical applications requiring efficient space utilization and robust load management.
Key Features:
- Non-separable bearing design combining radial needle roller and thrust ball bearing elements
- Accommodates moderate radial loads and lighter axial loads in a single direction
- Low-profile, compact construction ideal for space-constrained installations
- Cover with gap-type seal for effective grease retention
- Sheet steel cage for enhanced durability
- Self-retaining version for simplified installation
- Operates within temperature range of -20°C to +120°C
Technical Specifications:
- Brand: SKF
- Inside Diameter: 25mm
- Outside Diameter: 43.2mm
- Width: 30mm
- Material: Standard bearing steel
- Cage Material: Sheet steel
- Tolerance Class: P0/PN2 / ABEC 1
- Lubrication: Grease
- Operating Direction: Single direction
Typical Applications:
- Automotive transmission systems
- Industrial machinery with limited installation space
- Precision mechanical equipment
- Robotics and automation systems
- Compact mechanical designs requiring multi-directional load support
- Power transmission equipment
Ideal for engineers and designers seeking a reliable, space-efficient bearing solution that can handle complex load requirements in tight installation environments. The NKX25Z offers exceptional performance and durability across a wide range of mechanical applications, providing a versatile and robust bearing solution for demanding operational conditions.
