Sealey TA201 Digital Automotive Analyser 13-Function with Inductive Coupler
Also Try
Probes & Circuit Testers
Battery & Alternator Diagnostics
Wiring Tools
Battery & Alternator Tools
Test Leads
Buy Now
Qty:
Product Specification
AC Current
400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
AC Voltage
400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV)
Auto Power Off
Yes
Auto-Ranging
Yes
Back Light
Yes
Bar Graph Display
No
Batteries (supplied)
9V (PP3)
Brand
Sealey
Capacitance
40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
Continuity
<150Ω
DC Current
400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
DC Voltage
400mV, 4V, 40V, 400V, 600V (Auto-Ranging)
Digits Height
22mm
Diode Check
Yes (Typical Test Current 0.3mA)
Display Hold
Yes
Duty Cycle
0.1-99.9%
Dwell
2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°
Frequency
4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz
Hi-Impact Case
Yes
Inductive Coupler
Yes
IR Temperature
No
Low Battery Indicator
Yes
Model No
TA201
Nett Weight
330g
PC Interface
No
Pulse Width
No
Resistance
400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
Size (L x W x D)
146 x 66.2 x 41.5mm
Tach (rpm)
4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
Temperature
-20 to +760°C/-4 to +1400°F
Transistor Test
No
Weight
330g
Reference
TA201
Quick Order Code
BB-452015
Product Description

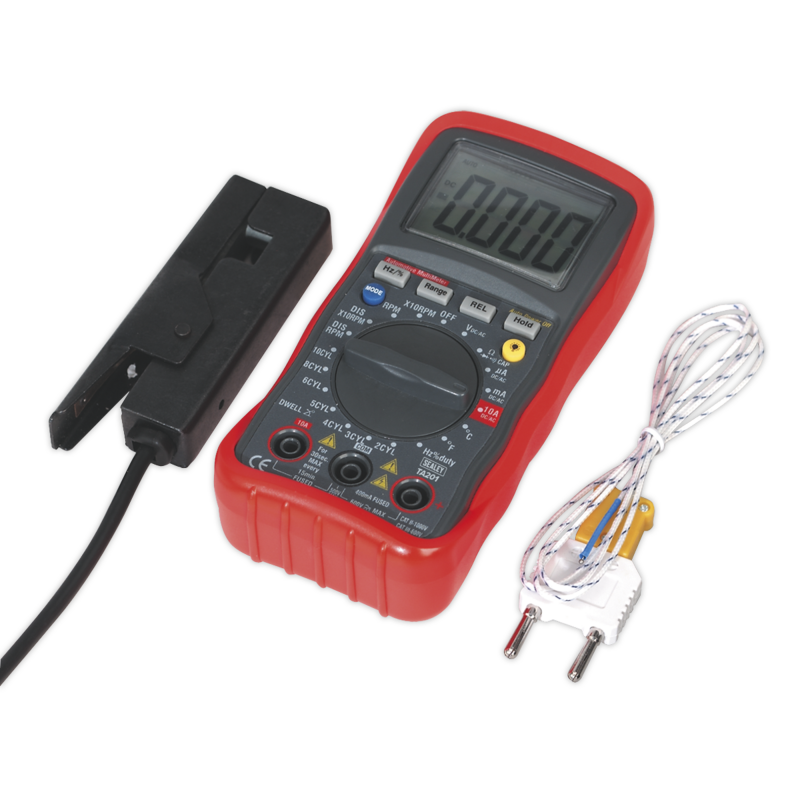

Compact size meter with 4-digit 22mm, high-contrast LCD display and back light.Features auto-ranging, data-hold and auto-power-off functions.
Includes inductive coupler for fast reading of engine rpm.

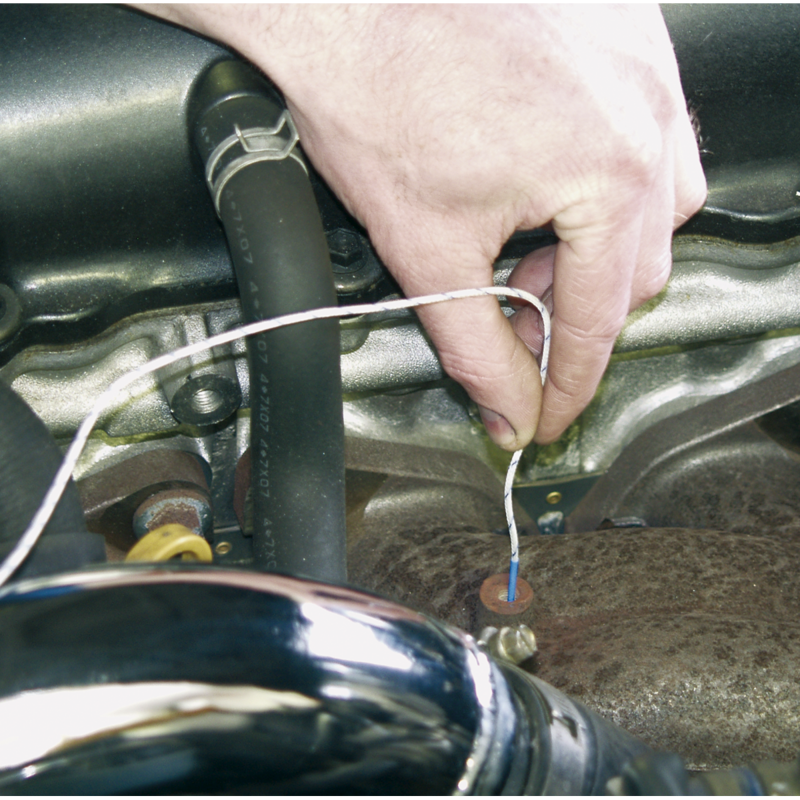

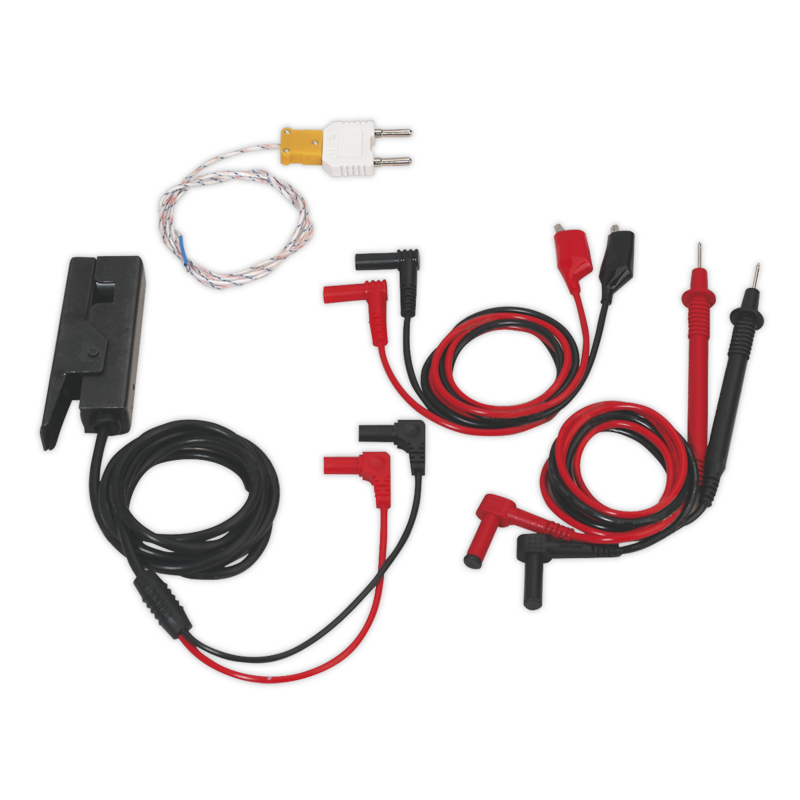

Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
