Bearings
Self Aligning Ball Bearings
Metric
Quick Code: BB-500972

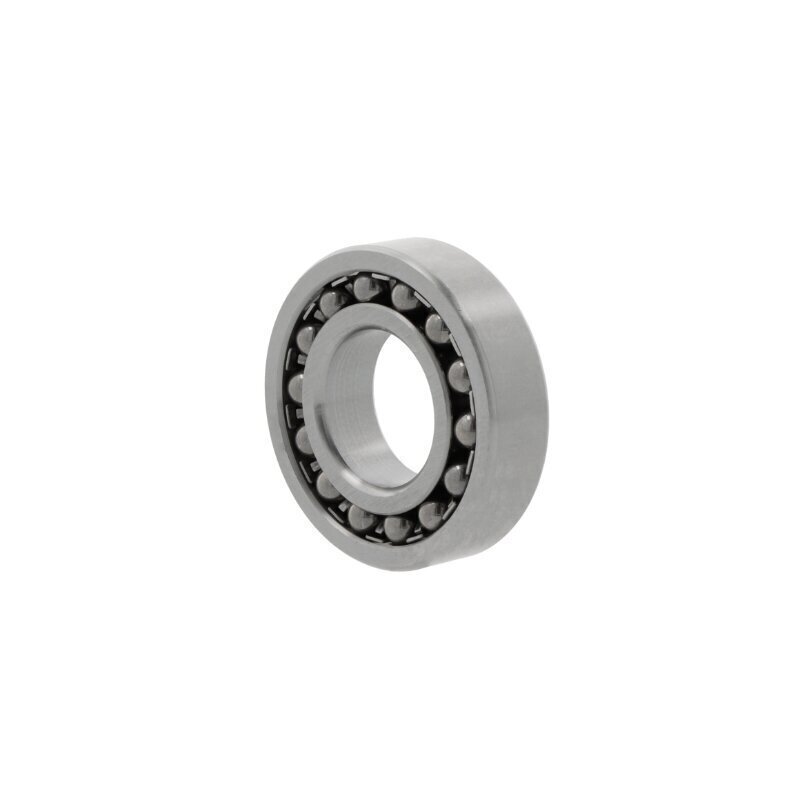

2313/C3 SKF Self Aligning Bearing
Help Articles
Also Try
Metric Oil Seals
BU Type Bearings - Metric
SKF Spherical Roller
Dunlop & Budget Ball Bearings
Imperial
Bearing Adaptor Sleeves
Buy Now
Qty:
Product Specification
Ball rows
Double row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
C3
Inner ring
Standard version
Inside Dia
65mm
Material
Standard bearing steel
Outside Dia
140mm
Product Type
Bearings
Seal
None, open bearing
Width
48mm
Reference
2313C3, 2313/C3, 2313 C3, 2313-C3
Additional Reference:
10062729
Quick Order Code
BB-500972
Product Description
The SKF 2313 /C3 is a double row, open design self-aligning ball bearing with a 65mm bore diameter and 140mm outer diameter. It features:
- Double row bearing design for heavy radial loads
- Cylindrical bore
- Sheet steel cage for cost-effective performance
- Slightly increased radial clearance
- Standard inner ring
- Made from standard bearing steel
- 48mm width
- Temperature range from -30 to +150°C
- Tolerance class P0/PN2 / ABEC 1
With its sturdy construction, the SKF 2313 /C3 is well-suited for heavy duty applications that require self-alignment to compensate for misalignment, such as in vibrating machinery, large electric motors, fans, pumps, and gearboxes. Its open design allows for high contaminant tolerance.
