Quick Code: BB-469995
200mm Polyurethane Nylon Plate Swivel Jacking Castor 600kg Load
Also Try
Industrial Castors
Stainless Steel
Heavy Duty Castors
Pallet Rollers (Pallet Trucks)
Castor Wheels Only
Polyurethane Tyre (Cast Iron Centre)
Buy Now

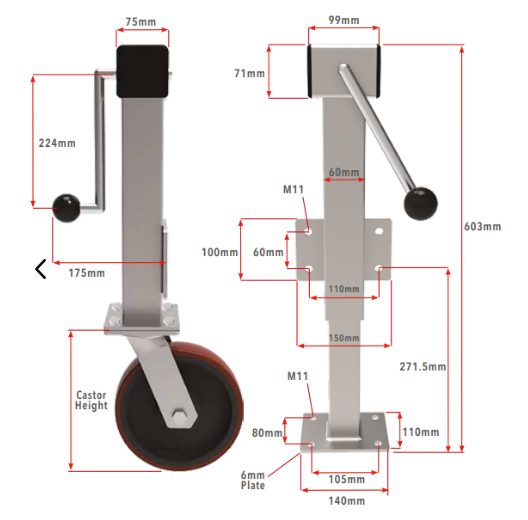

Product Specification
Castor Height
241mm
Diameter
200mm
Load Capacity
600kg
To Suit Bolt Fixing
10mm
Tread
50mm
Reference
JAZHS200NPB
Quick Order Code
BB-469995
Product Description
Side winding jacking unit with maximum lift of 200mm fitted with a fabricated swivel castor with a top plate fixing fitted with a red polyurethane tyre on a white nylon centred wheel with roller bearing bore.
Wheel diameter 200mm
Tread width 50mm
Maximum load for the complete unit is capacity 600kg.
Please note jacking castors are rated on a different principal to other castors and we recommend the total lifted load is divided over just 2 jacking units.
When jacked up to the height please be aware of any obstacles as a sudden shock could result in the inner square tube bending around the outer tube.
DO NOT OVERWIND - Handle excessively more than what is needed as this will cause the pin in the gearbox to shear.
(This is a safety precaution against over loading the unit)
