Quick Code: BB-347221

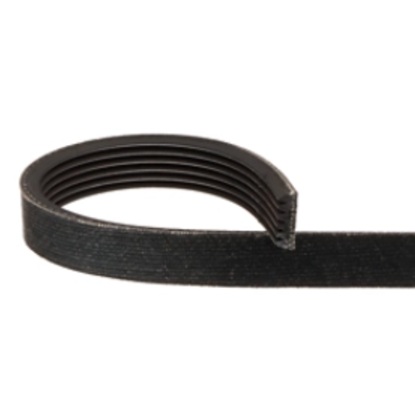

PJ1280/10 Gates Micro-V Belt (504J10)

Longer lead time - please allow approximately 4-5 working days for delivery
£24.54 exc VAT (£29.45 inc VAT)
Longer lead time   International shipping to United States unavailable
Buy Now
Product Specification
Brand
Gates
Code
504J
Length
50.4inch
Length (inch)
50.4inch
Length (mm)
1280mm
Number of Ribs
10
Pitch
2.34mm
Reference
9465-20544
Equivalent to:
1280J10
Quick Order Code
BB-347221
Product Description

Gates Micro-V belts ensure outstanding performance on any industrial multi-ribbed drive. They cover a multitude of industrial applications and are suitable for industrial drives in washing machines, textile machines, vacuum cleaners, lawn mowers, machine tools, medical equipment and many more.

Construction:

  • Truncated ribs ensure flexibility, reduce heat build-up and improve rib crack resistance. They also enhance load-carrying capacity on small diameter pulleys
  • Can be installed on grooved DriveR and flat DriveN pulley
  • High modulus, low stretch polyester tensile member provides superior resistance to fatigue and shock loads
  • All elastomeric rubber compound provides oil and heat resistance
  • Belts will operate in standard pulleys provided the pulleys are manufactured to the DIN 7867 or ISO 9982 standard for the specific cross-section
  • Specially formulated fibre reinforced undercord that improves belt stability
    Key Features
  • Extremely smooth and cool running
  • Very high power capacity per rib
  • Long life due to extra load-carrying capacity
  • Improved performance on back idlers
  • Smaller drive package
  • Tolerant of pulley groove debris
  • Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX (except PK profile)
  • Temperature range: -30 deg C to +60 deg C (PJ, PL, PM) or 50 deg C to +120 deg C (PK)
