Quick Code: BB-141808

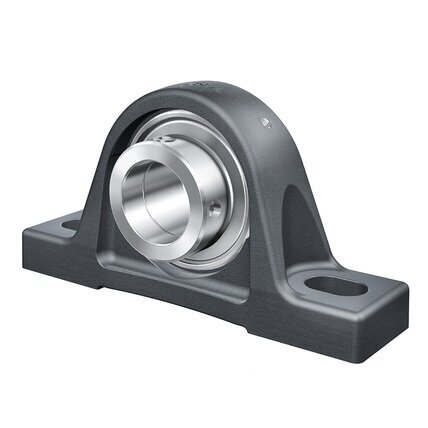

RASE45 45mm INA Pillow Block Bearing
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Bearing Inserts
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Qty:
Product Specification
Alternative Part Number
RASE45-XL; RASE45XL; RASE45
Bolt Hole Centre (J)
150mm
Bore Size (d)
45mm
Brand
INA
Height (H2)
107mm
Housing Width (A)
48mm
RHP Equivalent
NP45DEC
Total Length (L)
192mm
Reference
RASE45
Quick Order Code
BB-141808
Product Description
RASE45 45mm INA Pillow Block Bearing
Plummer block housing units with cast iron housing, radial insert ball bearing with eccentric locking collar and R seals.
Cast iron housings are single-piece units with high load carrying capacity.
For relubrication of radial insert ball bearings, the housing bore has a lubrication groove and the housing has a lubrication hole for conventional taper type lubrication nipples to DIN 71412.
Sizes (see diagram below):
d 45 mm
L 192 mm
H2 107 mm
A 48 mm
A1 32 mm
B1 56,5 mm
d3 max 63 mm
H 54 mm
H1 21,5 mm
J 150 mm
N 14 mm
N1 29 mm
Q M6
S1 35,1 mm
m 2,28 kg Mass
Cr 34500 N Basic dynamic load rating, radial
C0r 20400 N Basic static load rating, radial
ASE09 Designation of housing
GE45-XL-KRR-B Designation of bearing
