Product Specification
Alternative Part Number
RASE120-XL; RASE120XL
Bolt Hole Centre (J)
358mm
Bore Size (d)
120mm
Brand
INA
Height (H2)
265mm
Housing Width (A)
105mm
RHP Equivalent
NP120DEC
Total Length (L)
440mm
Reference
RASE120
Quick Order Code
BB-141821
Product Description

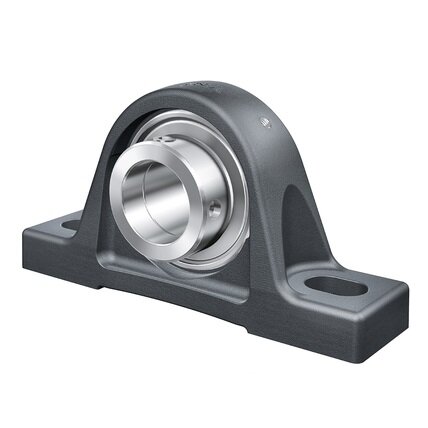

RASE120 120mm INA Pillow Block Bearing
Plummer block housing units with cast iron housing, radial insert ball bearing with eccentric locking collar and R seals.
Cast iron housings are single-piece units with high load carrying capacity.
For relubrication of radial insert ball bearings, the housing bore has a lubrication groove and the housing has a lubrication hole for conventional taper type lubrication nipples to DIN 71412.
Sizes (see diagram below):
d 120 mm
L 440 mm
H2 265 mm
A 105 mm
A1 70 mm
B1 81 mm
d3 max 152 mm
H 135 mm
H1 45 mm
J 358 mm
N 33 mm
N1 41 mm
Q M6
S1 52,5 mm
m 26,52 kg Mass
Cr 165000 N Basic dynamic load rating, radial
C0r 131000 N Basic static load rating, radial
ASE24 Designation of housing
GE120-XL-KRR-B Designation of bearing
