Quick Code: BB-530886

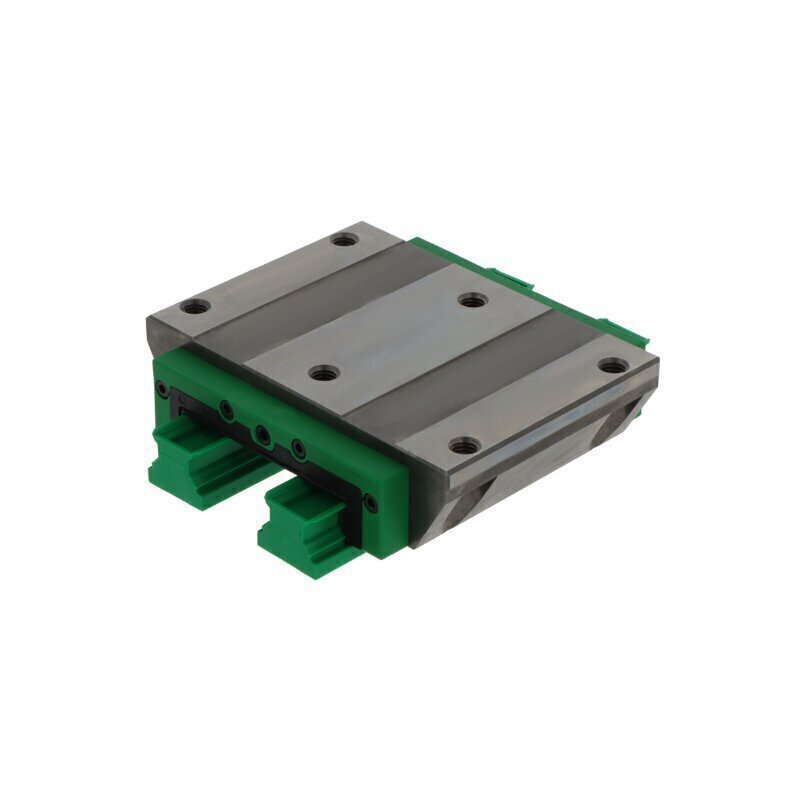

KWVE35-WL-V2-G3 INA Carriage
The KWVE35-WL-V2-G3 INA Carriage is a precision linear motion component engineered for applications demanding smooth, accurate linear movement with exceptional stability and load capacity. This flange carriage combines an innovative wide and long design with advanced engineering to meet demanding industrial requirements where superior precision and robust performance are essential.
Key Specifications:
- Series: 35 series
- Design: Flange carriage with wide and long design configuration
- Rolling Elements: Ball type, four-row configuration
- Preload: Medium preload for optimal performance and enhanced load distribution
- Material: Steel with plastic components for durability and precision
- Tolerance Class: G3 for demanding precision applications
- Ball Chain: Without ball chain
- Lubrication: Relubricatable for extended service life and reduced maintenance intervals
- Sealing: End seals and sealing strips for superior protection against contamination
- Operating Temperature Range: -10 to +80°C
Ideal Applications:
This carriage is exceptionally well-suited for:
- Heavy-duty industrial automation systems requiring high load capacity
- Large-format manufacturing equipment and machinery assemblies
- Material handling systems with extended travel requirements
- Precision positioning equipment where stability and accuracy are critical
- Machine tool applications demanding robust linear guidance
- Applications requiring superior precision combined with moderate to higher loading conditions
The combination of wide and long design provides exceptional stability, enhanced load-bearing capacity, and extended contact surfaces for superior performance under demanding conditions. The relubricatable design makes it ideal for applications requiring periodic maintenance and extended operational life, while the medium preload ensures balanced performance between smooth operation and load distribution.
As part of our extensive INA carriage selection, this model offers the precision engineering and performance reliability you can depend on for the most challenging industrial applications.
