Quick Code: BB-509301

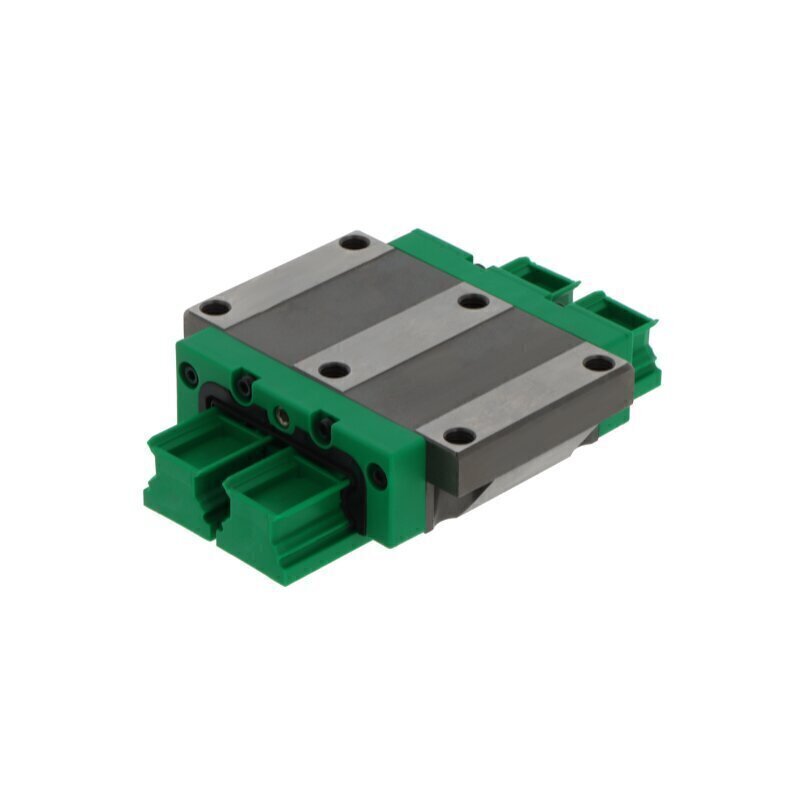

KWVE20-W-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
20 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Wide design
Reference
KWVE20WV1G3
Additional Reference:
10101668
Quick Order Code
BB-509301
Product Description
The KWVE20-W-V1-G3 INA Carriage is a precision-engineered flange carriage designed for linear motion applications requiring reliable performance and smooth operation across diverse industrial environments. This 20 series carriage combines advanced engineering with practical features to deliver dependable linear guidance, particularly suited for installations requiring a wider profile.
Key Specifications:
- Design: Flange carriage with wide design configuration for enhanced stability and support across broader mounting surfaces
- Rolling Elements: Four-row ball bearing configuration for enhanced load capacity and smooth operation
- Material Construction: Steel with plastic components for durability and lightweight performance
- Preload: Light preload for balanced precision and smooth motion control
- Lubrication: Relubricatable design allowing for scheduled maintenance and extended service life
- Sealing: End seals and sealing strips protecting against contamination and environmental ingress
- Tolerance Class: G3 for reliable precision in linear motion applications
- Operating Temperature: -10 to +80°C for versatile deployment across various industrial environments
- Configuration: Without ball chain for simplified, direct linear guidance
- Series: 20 series carriage
Ideal Applications:
The KWVE20-W-V1-G3 is well-suited for machine tools, automation systems, material handling equipment, printing machinery, and industrial equipment requiring smooth, accurate linear movement with excellent load distribution capabilities and stable support across wider installation areas.
