Quick Code: BB-509224

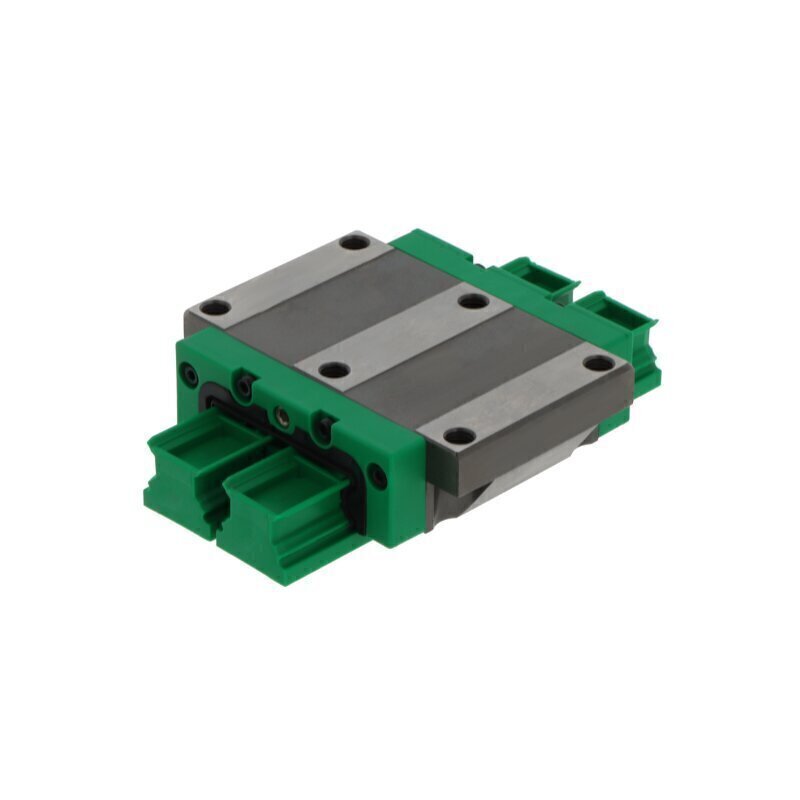

KWVE15-W-V2-G1 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Medium preload
Seal
End Seals and Sealing Strips
Series
15 series
Temperature range
-10 to +80 °C
Tolerance class
G1
Type of rolling elements
Balls
Version
Wide design
Reference
KWVE15WV2G1
Additional Reference:
10101321
Quick Order Code
BB-509224
Product Description
The KWVE15-W-V2-G1 INA Carriage is a precision-engineered flange carriage designed for linear motion applications demanding exceptional accuracy and smooth, reliable performance. This carriage combines advanced engineering with practical features to deliver consistent results in demanding industrial environments requiring superior precision and stability.
Key Specifications:
- Design: Flange carriage with wide design for enhanced stability and load distribution
- Series: 15 series
- Rolling Elements: Ball type in four-row configuration for excellent load capacity and smooth motion
- Preload: Medium preload for optimized rigidity, accuracy, and extended bearing life
- Material: Steel with plastic components for optimal durability and lightweight operation
- Tolerance Class: G1 for ultra-high precision requirements
- Lubrication: Relubricatable design with lubrication nipple for extended service life and convenient maintenance
- Sealing: End seals and sealing strips for effective protection against contaminants and environmental ingress
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Application Benefits:
The KWVE15-W-V2-G1 is ideal for precision-critical applications including:
- High-precision industrial automation and assembly systems
- Precision machinery requiring exceptional positioning accuracy
- Mechanical systems demanding superior dimensional stability
- Applications requiring smooth linear motion with minimal play or deflection
- Wide-profile installation requirements needing enhanced lateral stability
- Temperature-controlled industrial environments
- Systems requiring easy maintenance and scheduled relubrication
Brand: INA | Reference: KWVE15WV2G1
