Quick Code: BB-509225

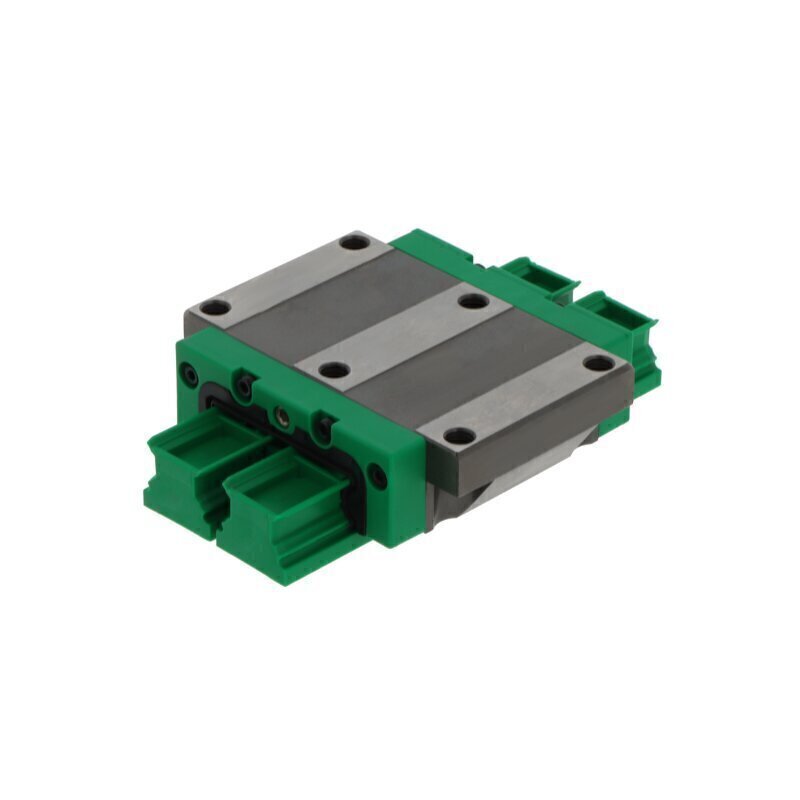

KWVE15-W-V1-G2 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
15 series
Temperature range
-10 to +80 °C
Tolerance class
G2
Type of rolling elements
Balls
Version
Wide design
Reference
KWVE15WV1G2
Additional Reference:
10101324
Quick Order Code
BB-509225
Product Description
The KWVE15-W-V1-G2 INA Carriage is a precision-engineered flange carriage designed for industrial linear motion applications requiring reliable, smooth, and accurate movement in compact installations. This four-row ball carriage delivers dependable performance and load capacity for systems where space efficiency and precision are important.
Key Specifications:
- Series: 15 series
- Design Type: Flange carriage with wide design
- Rolling Elements: Ball type, four-row configuration
- Preload: Light preload for smooth operation and balanced performance
- Tolerance Class: G2 for precise positioning and tight tolerances
- Material: Steel with plastic components for durability and cost-effectiveness
- Ball Chain: Without ball chain
Performance Features:
- Lubrication: Relubricatable design via lubrication nipple for extended service life and easy maintenance
- Sealing: End seals and sealing strips provide comprehensive protection against contamination and debris
- Operating Temperature: -10 to +80°C for versatile environmental compatibility
- Version: Wide design configuration suitable for applications requiring lateral stability and compact space utilization
Applications:
The KWVE15-W-V1-G2 is ideal for compact machinery and systems requiring light to moderate load capacities with consistent linear motion, including precision assembly equipment, compact automation systems, laboratory instruments, medical devices, and industrial positioning mechanisms where reliable performance, easy maintenance, and space-efficient design are essential.
Reference: KWVE15WV1G2 | Brand: INA
