HGH35CAZ0H Hiwin Linear Carriage
The HGH35CAZ0H Hiwin Linear Carriage is a precision-engineered linear motion component designed for applications requiring smooth, accurate linear movement. Manufactured by Hiwin, a world-leading brand in linear motion technology, this carriage block delivers exceptional performance and reliability for demanding industrial applications.
This compact linear carriage features an H-class accuracy rating, making it ideal for applications where precise positioning and repeatability are critical. The Z0 light preload configuration provides an optimal balance between smooth operation and rigidity, reducing friction while maintaining excellent guidance accuracy.
The HGH series carriages are designed for use with compatible Hiwin HG series linear guideways, providing a complete linear motion solution with high load capacity and excellent running accuracy.

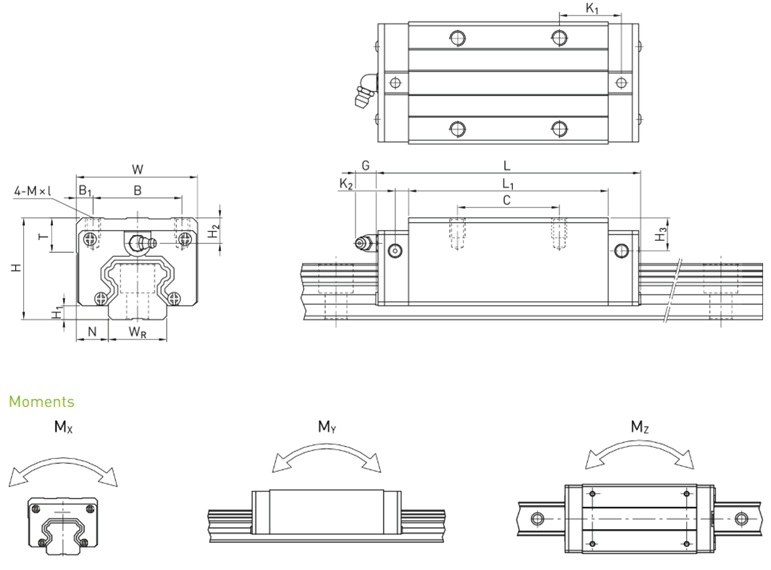

Typical Applications: CNC machinery and machine tools 3D printers and additive manufacturing equipment Automated assembly systems Semiconductor manufacturing equipment Precision measuring instruments Medical and laboratory automation Pick-and-place systemsTechnical Dimensions:
Load ratings and torques
