Quick Code: BB-700004

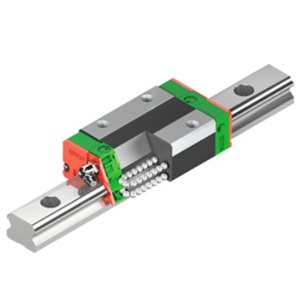

EGW15CCZ0H Hiwin Carriage
The EGW15CCZ0H is a precision-engineered linear carriage manufactured by Hiwin, a globally recognized leader in linear motion technology. This flange-type carriage block is designed to deliver smooth, accurate linear movement for demanding industrial applications requiring high precision and reliability.
The flange block configuration provides versatile mounting flexibility, allowing you to fasten your adjacent structure from either above or below. This design offers enhanced rigidity, improved moment load capacity, and simplified alignment during installation compared to standard block designs.
Featuring an H accuracy class rating, this carriage delivers exceptional precision and repeatability, making it the ideal choice for applications where tight tolerances and consistent positioning accuracy are critical. The compact profile with a total height of just 28mm makes it well-suited for space-constrained machine designs without compromising on performance.
The EGW series carriages are engineered to work seamlessly with compatible Hiwin EG series linear guideways, providing a complete linear motion solution with excellent running accuracy and dependable long-term performance.
Key Features:
Typical Applications:

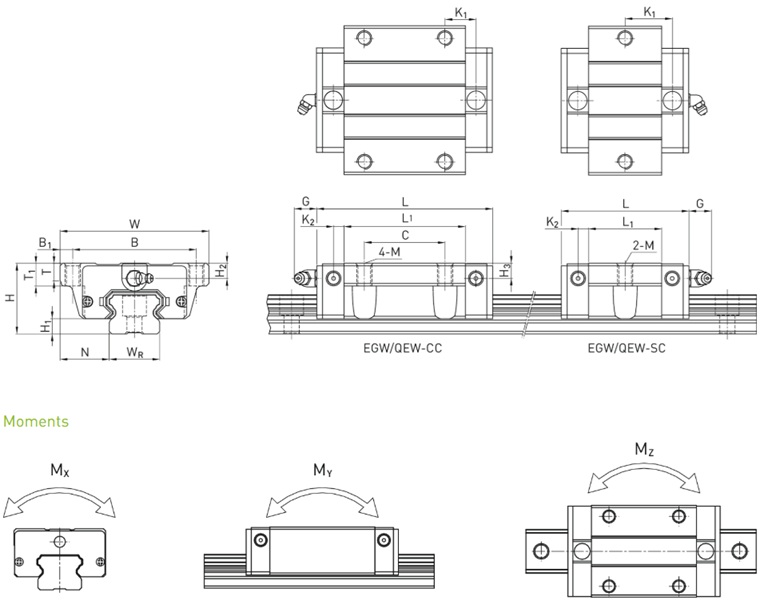

Dimensions:
Load ratings and torques
