Quick Code: BB-699997

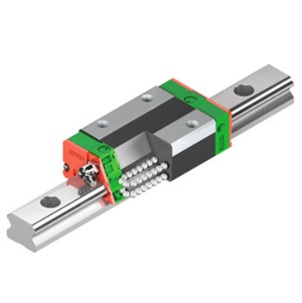

EGH15CAZ0C Hiwin Carriage
The EGH15CAZ0C Hiwin Carriage is a precision-engineered linear motion component designed for applications requiring smooth, accurate linear movement. Manufactured by Hiwin, a global leader in linear motion technology, this high block carriage delivers reliable performance for a wide range of industrial and automation applications.
This carriage features a high block design, allowing you to fasten your adjacent structure from above, providing versatile mounting options and simplified assembly. The C-class accuracy rating ensures dependable positioning accuracy suitable for general-purpose automation and machinery applications. The Z0 designation indicates a standard preload configuration, offering an excellent balance between smooth operation and load-bearing capability.
The EGH series carriages are designed for use with compatible Hiwin EG series linear guideways, providing a complete linear motion solution with compact dimensions ideal for space-constrained applications.
Typical Applications:
Dimensions:
Load ratings and torques:
