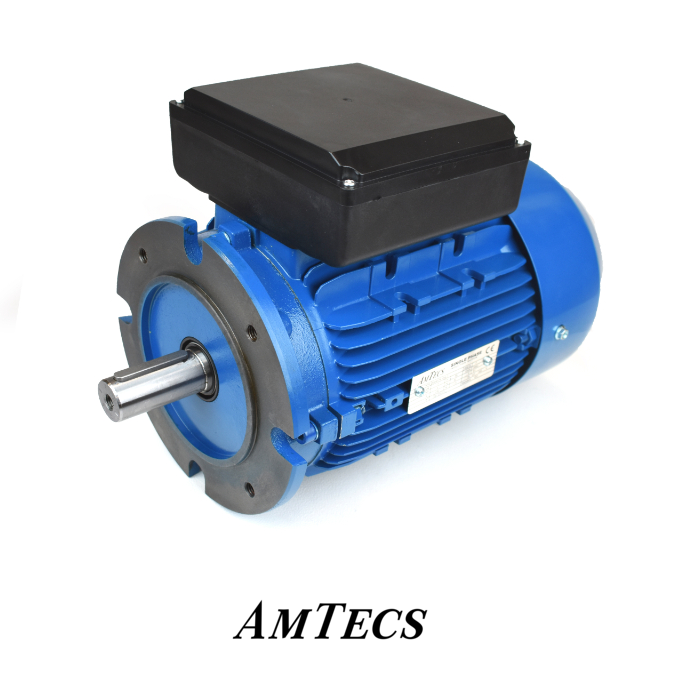

Amtecs IE1 0.55kW 4 Pole Single Phase Perm Cap B14L Large Face Mount Electric Motor, 80 Frame
Also Try
Flange Mounted Electric Motors (B5)
Foot Mounted Electric Motors (B3)
Foot & Face Mounted Electric Motors (B34)
Foot & Flange Mounted Electric Motors (B35)
Buy Now
Product Specification
Brand
Amtecs
Frame Size
80
Mounting
B14L Large Face
Output Rating (hp)
0.75
Output Rating (kW)
0.55
Shaft Size
19mm
Speed
1500rpm
Reference
28414055R
Quick Order Code
BB-401956
Product Description
This range of aluminium single phase running capacitor multi-mount motors is suitable for many different industrial applications. The running capacitor design is suitable for low starting torque applications such as fans. The multi-mount design enables the feet to be removed or moved to provide left, right or top terminal box configurations. Lower starting torque 0.3 - 0.7 times the rated torque.
ApplicationsKey Features
