Quick Code: BB-533027

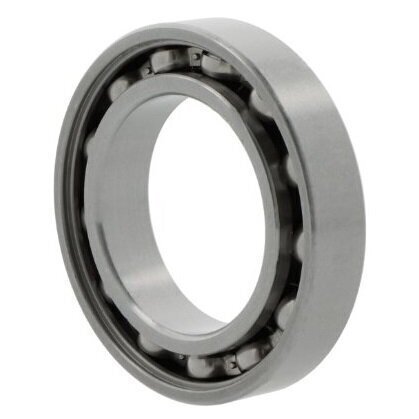

6304-C-Z (-Z) FAG Deep Groove Ball Bearing with Shield on One Side Only 20mm x 52mm x 15mm
Help Articles
Also Try
SPZ Section Cast Iron - Taper Lock
Taper Bushes
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
FAG
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
20mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
52mm
Sealing
Shielded on One Side Only
Temperature range
-20 to +150 °C
Tolerance class
Tolerance class P6 / ABEC 3
Width
15mm
Reference
6304 -C-Z (-Z)
Additional Reference:
10216743
Quick Order Code
BB-533027
Product Description
6304-C-Z (-Z) FAG Deep Groove Ball Bearing
