Quick Code: BB-530760

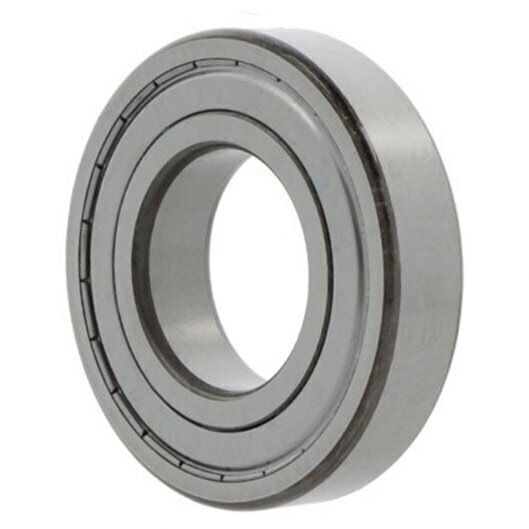

S625-2Z-C3-HT200 ZEN Stainless Shielded Deep Groove Ball Bearing 5mm x 16mm x 5mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inside Dia
5mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
16mm
Sealing
Shielded
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
5mm
Reference
S625-2Z-C3-HT200
Additional Reference:
10188141
Quick Order Code
BB-530760
Product Description
The S625-2Z-C3-HT200 ZEN Stainless Shielded Deep Groove Ball Bearing is a precision-engineered, high-performance miniature bearing designed for demanding applications requiring compact, reliable performance in small mechanical systems.
Key Technical Specifications:
- Dimensions: 5mm x 16mm x 5mm
- Single row deep groove design
- Cylindrical bore
- Stainless steel construction (rolling elements and body)
- Sheet steel cage
- Shielded type (2Z) for contamination protection
- Slightly increased C3 radial clearance
- Temperature range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
Key Features:
- Corrosion-resistant stainless steel material
- Enhanced protection against dust and contaminants
- Compact and lightweight design
- Suitable for high-precision applications
- No current insulation
- Outer ring without flange/groove
Typical Applications:
- Precision medical devices
- Miniature electronic equipment
- Small robotics and automation systems
- Instrument mechanisms
- Compact motor assemblies
- Aerospace and defense miniature components
- High-precision scientific instruments
The S625-2Z-C3-HT200 offers exceptional performance in environments requiring minimal friction, high precision, and protection against contamination. Its stainless steel construction provides excellent resistance to corrosion and wear, making it ideal for demanding, space-constrained applications.
Brand: ZEN
Reference: S625-2Z-C3-HT200
