Quick Code: BB-517195

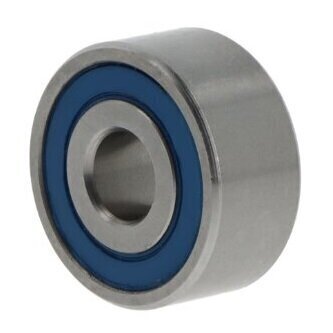

4208-2RS ZEN Sealed Deep Groove Ball Bearing 40mm x 80mm x 23mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Double row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Polyamide cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
40mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
80mm
Sealing
Sealed
Temperature range
-30 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
23mm
Reference
4208-2RS
Additional Reference:
10127344
Quick Order Code
BB-517195
Product Description
The 4208-2RS ZEN Sealed Deep Groove Ball Bearing is a robust, high-performance double-row ball bearing designed for reliable operation in demanding mechanical and industrial applications. This precision-engineered bearing offers excellent durability and consistent performance in a compact 40mm x 80mm x 23mm configuration.
Key Features:
- Double-row deep groove design
- Cylindrical bore for versatile mounting
- Sealed configuration (2RS) for enhanced protection
- Polyamide cage for lightweight and durable construction
- Standard bearing steel construction
- Normal radial clearance for smooth operation
Technical Specifications:
- Inside Diameter: 40mm
- Outside Diameter: 80mm
- Width: 23mm
- Temperature Range: -30°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Sealing Type: Sealed (2RS)
- Current Insulation: No
- Cage Material: Polyamide
Typical Applications:
- Industrial machinery
- Automotive systems
- Conveyor equipment
- Power transmission systems
- Heavy-duty mechanical equipment
The ZEN 4208-2RS bearing provides exceptional protection against dust, moisture, and light contaminants. Its double-row design offers increased load-bearing capacity and improved stability, making it ideal for applications requiring robust and reliable performance. The sealed construction helps extend bearing life by effectively containing internal lubricant and preventing external contamination.
