Transmissions Anti-Vibration Mounts Cones with Fixation Flange
Quick Code: BB-369196

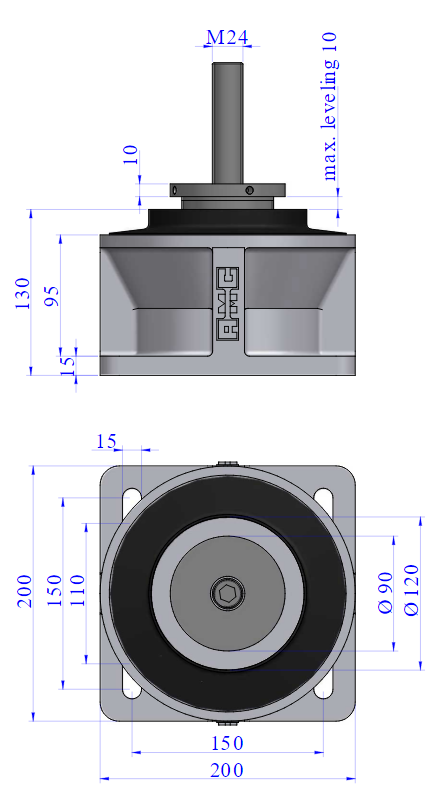

Cone 100 A With Fixation Flange

Longer lead time - please allow approximately 5-7 working days for delivery
£660.93 exc VAT (£793.12 inc VAT)
Longer lead time   Free Delivery Available   Next Day Unavailable
Buy Now
Qty:
Product Specification
Reference
137213
Brand
AMC
Quick Order Code
BB-369196
Product Description

The cones with fixation flange from AMC were designed to offer excellent axial elasticity under heavy loads. The elastomer used is a low dynamic stiffness compound, which makes it possible to obtain low natural frequencies thus maintaining excellent stability of the suspended unit.

The mounts radial stiffness is greater than the axial rate. This is particularly interesting for applications where horizontal stability needs to be maintained.

All models incorporate an interlocking metal part that acts as a FAILSAFE system. Thanks to this, and to the ruggedness of the metal parts, this mount is suitable for applications where the suspended unit is submitted to great shocks.

(The AMC-Mecanocaucho Cone 100 mount is supplied with a height adjuster. This makes it possible to easily align transmission shafts without having to use additional accessories to do so.)

Designed specially for use in engines and auxiliary machinery for static and mobile applications in all kinds of vehicles.


  • Data Sheet
  • Marine Type approval for cones with fixation flange (DNV)
