Quick Code: BB-697242

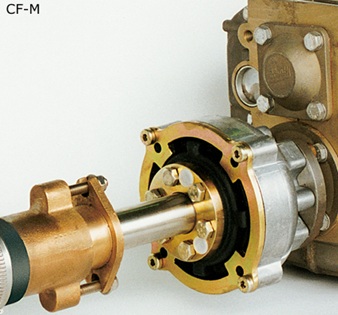

CLEARANCE CF-M-127-K-1.4-31.75-CENTA Centaflex M, Size 127. Type 1.4 31.75mm Dia Clamping Hub C/w Studs & Locknuts - 4 AVAILABLE ONLY
Also Try
V & Wedge Belts
Timing Belts & Pulleys
Roller Chains
Chain Sprockets
V & Wedge Pulleys
Buy Now
Product Specification
Brand
CENTA
Product Type
Marine Couplings
Reference
CF-M-127-K-1.4-31.75-CENTA
Quick Order Code
BB-697242
Product Description
4inch Flange, HBW, SOM, Velvet, ZF-BW7-A+C, BW 12, TMC 30
These CENTAFLEX couplings and joint shafts have been specially designed for applications in boats and yachts, for the connection of reversing gears and propellor shafts. They have the following advantages and features:
• Torsionally elastic, backlash free, potentially damaging torsional vibration produced by the engine is dampened, especially at low speeds.
• Additionally, noise is dampened by up to 5 dBA and more, the rubber of the coupling does not lead the noise of the engine to the hull. Reduced vibrations protect all parts of the unit in particular those of electronics.
• The couplings compensate for all types of misalignments, particularly angular, thus reducing wear on the shaft bearing and gearbox.
• The propellor thrust (or propellor pull in reverse drive) is transmitted from the propellor shaft to the gearbox, or in the case of type CF-AGM/ACV it is transmitted directly onto the hull of the vessel.
• The coupling is fastened to the plain cylindrical propellor shaft by means of a securely dimensioned clamping hub. thus expensive machining of the propellor shaft is not necessary. Length adaption is simple, and there is no weakening of the propellor shaft diameter caused by a bore or
keyway.
• Simple assembly, with flange connection and hubs supplied fully machined for immediate installation. They can also be delivered with a suitable adaptor flange to mount to any
nonstandard gearbox flange.
• The couplings are electrically insulating and therefore give protection from electrolysis damage
Key Features
