Quick Code: BB-661151

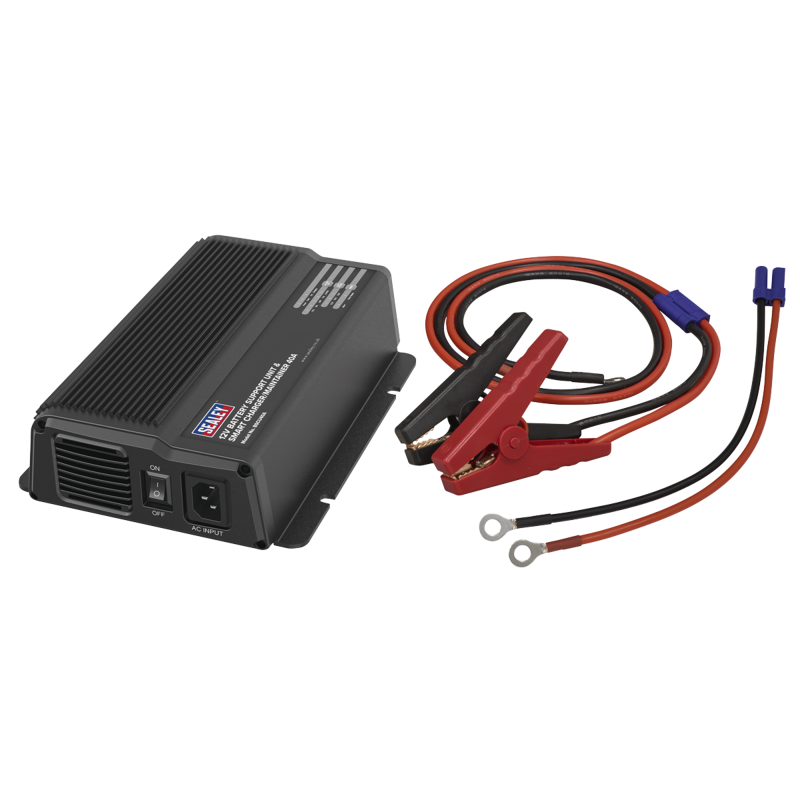

Sealey BSCU40A 12V Battery Support Unit Smart Charger/Maintainer 40A
Also Try
Starters & Chargers
Consumables
Miscellaneous
Solar Chargers
Buy Now
Qty:
Product Specification
AGM/EFB
Yes
Battery Range
80-500Ah
Battery Support/DC Supply Mode
Yes
Brand
Sealey
Cable & Clamp Length
1.1m
Cable and Clamp Length
1.10m
Charger TypeTraditional (T) or Intelligent (HF)
HF
GEL
Yes
Leisure (Deep Discharged)
Yes
Lithium
Yes
Max Size Battery (AH) Full charge in 12hrs from Discharged
480Ah
Model No
BSCU40A
Nett Weight
2kg
Output
12V
Output Charge Peak
40A
Output Start Peak
N/A
Plug Type
3-Pin
Power Supply Cable Length
1.65m
Supply (Current)
230V
Supply (Current)
4.3A
Type of Battery
VRLA (Lead Acid)
Yes
Weight
2kg
Zero Volt Charging
Yes
Reference
BSCU40A
Quick Order Code
BB-661151
Product Description
BATTERY SUPPORT UNIT - 12V 40A Smart Battery Support Unit and charger designed to both charge 12V batteries and provide support for the battery during prolonged electronic diagnostic checks and reprogramming. COMPATIBLE BATTERY TYPES - Suitable for charging and maintaining a variety of VRLA, Gel, AGM/EFB, leisure and lithium batteries.
SAFETY FEATURES - Safety features include over-charge, over-heat, short circuit and reverse polarity protection.
TEMPERATURE SENSOR - Temperature sensor allows accurate charging of battery even when cold.

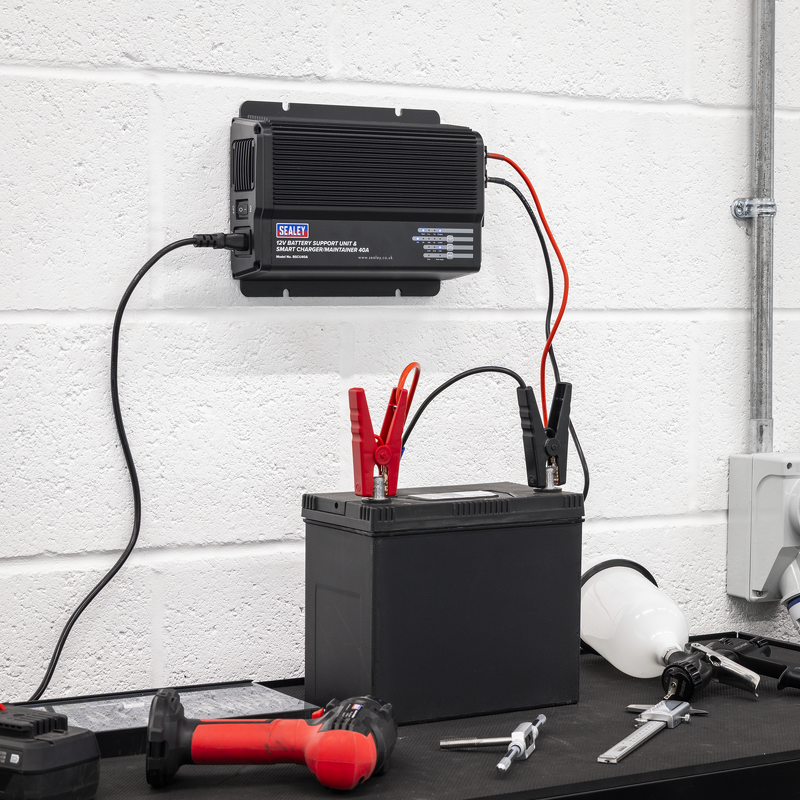

WALL MOUNTABLE - Compact design with mounting holes for permanent fitting.
AUTOMATIC MAINTAINIG FUNCTION - Once fully charged, battery may be left connected to be automatically conditioned and maintained.

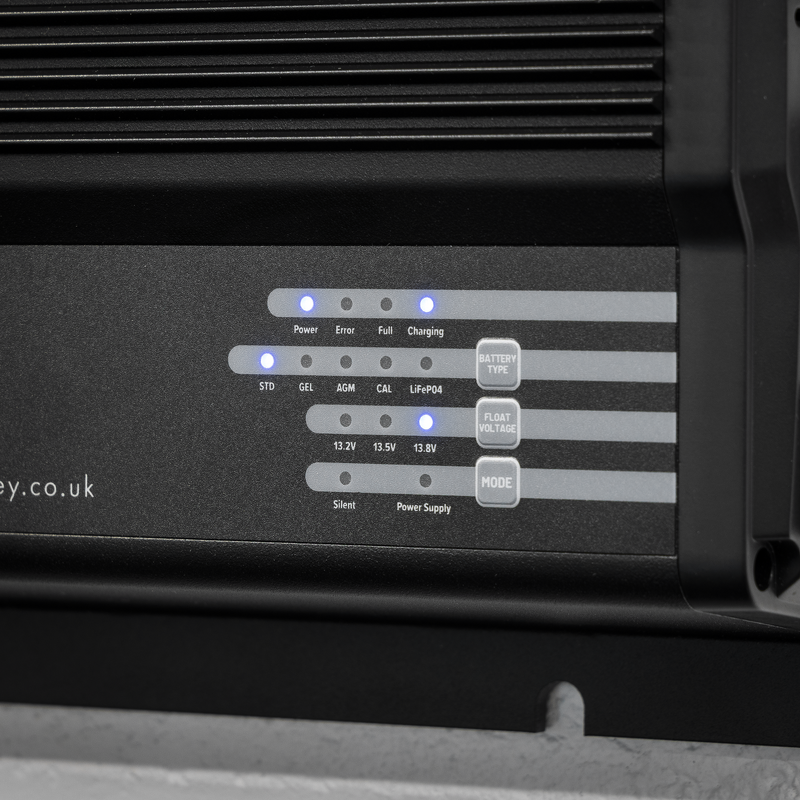

ADJUSTABLE FLOAT MODES - Optional Float mode from 13.2V, 13.5V and 13.8V so it can be matched to the manufacturers guidelines.
2 YEAR GUARANTEE.
