Quick Code: BB-526515

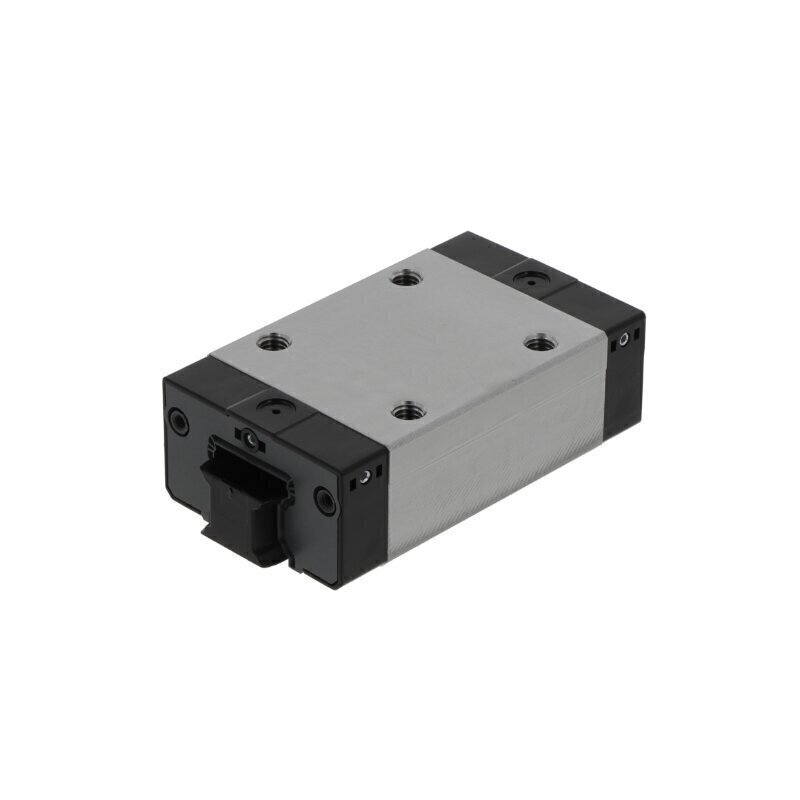

R169489410 KWC-020-SNN-C0-N-2 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Without preload
Seal
End Seals
Series
20 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Slimline and low design
Reference
R169489410KWC020SNNC0N2
Additional Reference:
10157155
Quick Order Code
BB-526515
Product Description
R169489410 KWC-020-SNN-C0-N-2 (CS) Bosch Rexroth Carriage
This compact block carriage from Bosch Rexroth is engineered for linear motion applications requiring a space-efficient design with reliable performance. The KWC-020-SNN model features a slimline and low configuration, making it ideal for equipment with tight dimensional constraints while maintaining the precision and durability expected from Bosch Rexroth linear guidance systems.
Key Specifications:
- Design: Block carriage with slimline and low profile for maximum space optimization
- Series: 20 series – compact design for applications requiring minimal footprint
- Rolling Elements: Double row ball bearings for smooth and consistent linear motion
- Preload: Without preload – optimized for reduced friction and smooth operation
- Tolerance Class: Normal Class – suitable for standard industrial positioning and motion control applications
- Material: Carbon steel construction for durability and strength
- Sealing: End seals to protect against contamination and extend operational life
- Operating Temperature: -10 to +100°C, providing reliability across diverse environmental conditions
- Maintenance: Relubrication capability via integral lubrication nipple for convenient service intervals
- Ball Chain: Without ball chain option for simplified installation and configuration
Typical Applications: Compact automation equipment, space-constrained linear positioning systems, general industrial machinery, assembly line conveyor systems, and applications where minimal vertical or horizontal clearance is critical.
