R169381310 KWC-020-FNN-C1-H-2 (CS) Bosch Rexroth Carriage

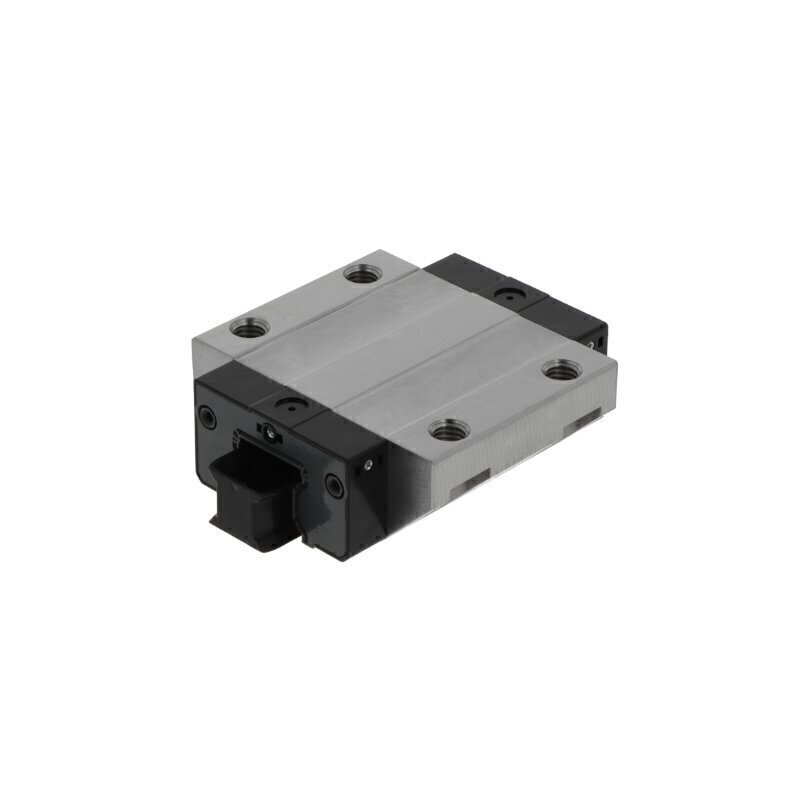

R169381310 KWC-020-FNN-C1-H-2 (CS) Bosch Rexroth Flange Carriage
This precision-engineered flange carriage from Bosch Rexroth is part of the 20 series linear carriage range, specifically designed for applications requiring high accuracy with a compact, low-profile configuration. Featuring a low design variant with double-row ball bearings, this carriage delivers exceptional precision and smooth linear motion in demanding industrial automation, machinery, and positioning systems while maintaining superior accuracy tolerances and reliable performance.
Key Specifications:
- Series: 20 series for compact to medium-duty applications
- Design Type: Flange carriage with low design for space-constrained installations
- Rolling Elements: Double-row ball bearings for smooth, precise linear motion and balanced load distribution
- Preload: Light preload for optimized precision and smooth operation with moderate load capacity
- Tolerance Class: H (High-Precision Class) for superior accuracy and repeatability
- Material: Carbon steel for durability and reliable performance in demanding industrial environments
- Sealing: End seals to protect against contaminants, dust, and debris for extended service life
- Ball Chain: Without ball chain
- Operating Temperature Range: -10 to +100°C for versatile application environments
- Lubrication: Relubrication capability via integrated lubrication nipple for extended maintenance intervals and reduced downtime
Performance Characteristics:
The low design configuration of this flange carriage makes it ideal for applications with height restrictions while maintaining high-precision performance. The light preload setting provides an excellent balance between precision positioning and smooth, energy-efficient operation. The double-row ball bearing arrangement ensures consistent performance and reliable load distribution across the carriage travel.
Ideal Applications:
This carriage is well-suited for precision automation equipment, CNC machinery, assembly systems requiring compact installations, material handling equipment, manufacturing machinery, test benches, and positioning systems where high accuracy, space efficiency, and reliable linear motion are critical requirements. The low design makes it particularly effective for applications with limited vertical space while maintaining the precision and performance necessary for demanding industrial environments.
Maintenance Advantage:
The relubrication capability extends service life and reduces downtime, allowing for easy maintenance through the dedicated lubrication nipple, ensuring optimal performance and precision throughout the product lifecycle.
Reference: R169381310KWC020FNNC1H2 | Brand: Bosch Rexroth
