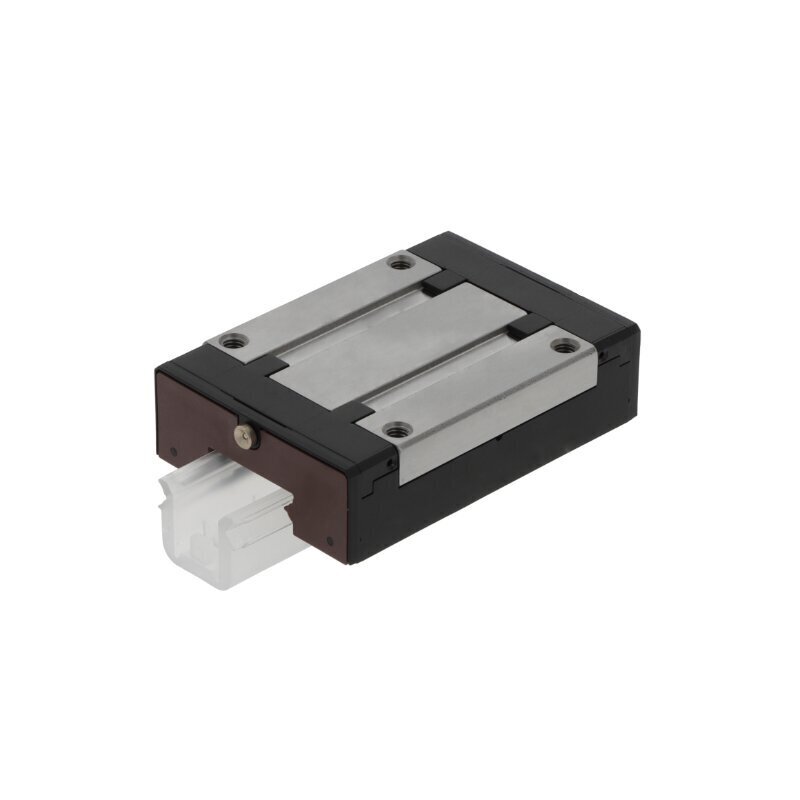

R163211320 KWD-015-SNS-C1-H-1 (AL) Bosch Rexroth Carriage
R163211320 KWD-015-SNS-C1-H-1 (AL) Bosch Rexroth Carriage
This precision-engineered linear carriage from Bosch Rexroth combines lightweight aluminium construction with high-precision performance, making it ideal for applications where weight reduction is critical without compromising accuracy. The KWD-015-SNS-C1-H-1 features a compact small design that delivers exceptional precision motion control in space-constrained installations, particularly suited for industries demanding both performance and material efficiency.
Key Specifications:
- Series: 15 series (compact configuration)
- Design: Block carriage with small design version
- Rolling Elements: Ball bearings in double row arrangement for smooth, reliable motion
- Preload: Light preload for responsive, balanced performance
- Tolerance Class: H (High-Precision Class) for superior accuracy and repeatability
- Material: Aluminium construction for lightweight performance and corrosion resistance
- Seal Type: End seals for reliable protection against contamination
- Lubrication: Can be relubricated via integrated lubrication nipple for extended service life and straightforward maintenance
- Operating Temperature Range: -10 to +100°C
- Ball Chain: Without ball chain
Ideal Applications:
This carriage is particularly well-suited for:
- Lightweight automation systems where weight reduction is essential
- Precision positioning in compact industrial machinery
- Aerospace and aviation equipment requiring high-precision, lightweight components
- Medical and laboratory instrumentation with space and weight constraints
- Robotics applications demanding both accuracy and reduced inertia
- Food and beverage processing equipment where corrosion resistance is beneficial
- Semiconductor and electronics manufacturing with demanding precision requirements
Brand: Bosch Rexroth | Reference: R163211320KWD015SNSC1H1
The combination of lightweight aluminium construction, high-precision tolerance class, compact small design, and proven 15 series reliability makes this carriage an excellent choice for applications requiring superior accuracy with minimal weight impact.
