Castors Fabricated Castors Fabricated Black Painted Steel Housing with Kingpin BZQ Series Black Elastic Rubber on Cast Iron
Quick Code: BB-85508

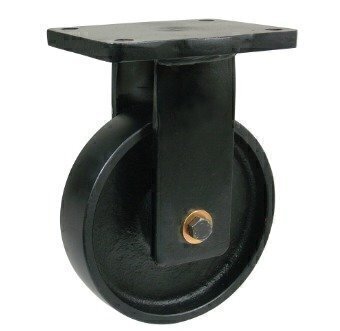

BZQF200CRBJ/60 200mm Black Elastic Rubber on Cast Iron Heavy Duty Castor - Fixed 4 Bolt Unbraked

£73.92 exc VAT (£88.70 inc VAT)
In Stock   Free Delivery Available   Next Day Order by 2pm
Buy Now
Qty:
Product Specification
Hole Centres
140x110mm
Max Load
600kg
Overall Height
264mm
Top Plate
175x140mm
Tread Width
60mm
Wheel Dia
200mm
Reference
BZQF200CRBJ/60
Quick Order Code
BB-85508
Product Description
BZQF200CRBJ/60 200mm Black Elastic Rubber on Cast Iron Heavy Duty Castor - Fixed 4 Bolt Unbraked

Housing made of fabricated black-painted steel with kingpin.

  • Supplied with ball journal
  • Single piece forged alloy steel top plate with an integrally forged kingpin
  • Forged fork base
  • Combination of thrust ball bearing (DIN 711) and tapered roller bearing (DIN 720) in the swivel head
  • Swivel head-play made adjustable by a slotted nut/cotter pin arrangement
  • Totally sealed swivel head with grease nipple
  • 10mm thick legs cylindrically formed - robotically welded inside and outside
  • Polymer-painted black finish
