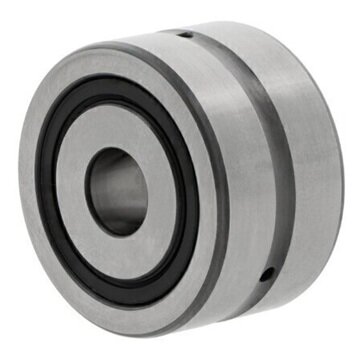

ZKLN3062-2RS-PE INA Axial Angular Contact Bearing 30mm x 62mm x 28mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
30mm
Outside Dia
62mm
Sealing Type
Sealed
Width
28mm
Reference
ZKLN3062-2RS-PE
Quick Order Code
BB-137571
Product Description
ZKLN3062-2RS-PE INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic operating conditions in demanding screw drive applications. With a 30mm bore and 62mm outer diameter, the ZKLN3062-2RS-PE delivers reliable performance where high accuracy, superior load carrying capacity, rigidity, and low friction are essential requirements.
Key Performance Characteristics:
- Supports both radial and high axial forces thanks to the precision 60 degree contact angle
- Maintains maintenance-free or low-maintenance operation
- Provides high rigidity for precision applications
- Delivers low friction performance for extended service life
Design Features:
- Double direction load capacity for versatile mounting configurations
- Sealed design with lip seals on both sides for reliable protection against contaminants
- Housing bore mounted design for direct installation in housing assemblies
- Axially located by cover for secure and stable positioning
- PE specification with increased tolerances for applications where lower accuracy is acceptable
Specifications:
- Bore Diameter: 30mm
- Outer Diameter: 62mm
- Width: 28mm
- Sealing Type: Sealed (Lip Seals on Both Sides)
- Mounting Style: Housing Bore Mounted
- Manufacturer: INA
Ideal for precision machinery, spindle assemblies, and high-performance screw drive systems where reliability, durability, and maintenance-free operation are paramount.
