Quick Code: BB-137570

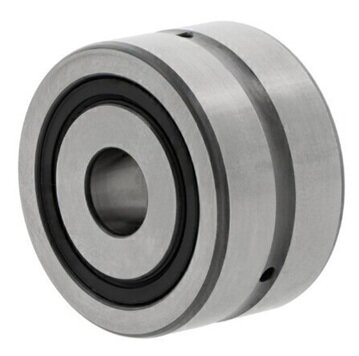

ZKLN2557-2RS-PE INA Axial Angular Contact Bearing 25mm x 57mm x 28mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
25mm
Outside Dia
57mm
Sealing Type
Sealed
Width
28mm
Reference
ZKLN2557-2RS-PE
Quick Order Code
BB-137570
Product Description
ZKLN2557-2RS-PE INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for highly dynamic applications requiring exceptional performance in demanding operating conditions. With a 60 degree contact angle, it efficiently supports both radial and high axial forces, making it ideal for screw drive systems and similar precision applications.
Key Features:
- Double direction capability for versatile load support
- 60 degree contact angle for superior load distribution
- High accuracy and rigidity for precision applications
- Low friction design for efficient operation
- Sealed design (2RS) with lip seals on both sides for maintenance-free performance
- PE tolerance specification accommodating lower accuracy requirements
- Housing-mounted design with axial location via cover for secure installation
Specifications:
- Brand: INA
- Bore Diameter: 25mm
- Outer Diameter: 57mm
- Width: 28mm
- Sealing Type: Double-sided lip seals
Applications:
This bearing is particularly well-suited for screw drive systems and similar applications where high load capacity, rigidity, and low-maintenance operation are essential. The sealed design eliminates the need for regular lubrication, reducing maintenance requirements and operational costs.
