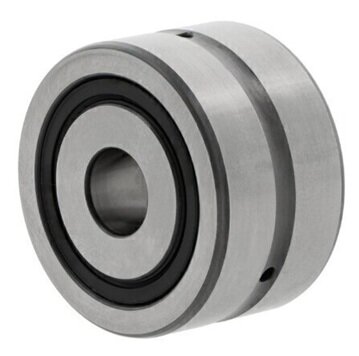

ZKLN2052-2RS-PE INA Axial Angular Contact Bearing 20mm x 52mm x 28mm
The ZKLN2052-2RS-PE is a precision INA axial angular contact bearing engineered for highly dynamic operating conditions in screw drive applications. With dimensions of 20mm inner diameter, 52mm outer diameter, and 28mm width, this bearing delivers reliable performance where high accuracy, load capacity, rigidity, and low friction are essential.
Key Performance Features:
- 60 degree contact angle enables support of both radial and high axial forces
- Double direction capability for versatile bi-directional load handling
- Lip seals on both sides for maintenance-free or low-maintenance operation
- PE tolerance specification accommodates applications where lower accuracy is acceptable, providing cost-effective solutions without sacrificing performance
Design & Installation:
The ZKLN bearing range is specifically designed for housing bore mounting with the outer ring axially located by a cover, making it ideal for applications requiring straightforward integration into existing housing designs. This installation method provides excellent stability and load distribution in demanding industrial environments.
Ideal Applications:
- Precision screw drive systems
- Machine tool spindles
- High-speed rotating equipment
- Industrial machinery requiring axial and radial load support
- Applications demanding high rigidity and low friction performance
- Space-constrained assemblies with reliable performance requirements
The ZKLN2052-2RS-PE bearing combines robust construction with precision engineering to deliver dependable performance in demanding industrial environments while offering flexibility for varied accuracy requirements.
