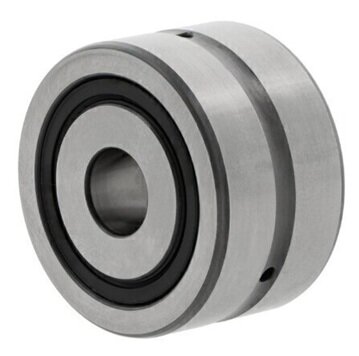

ZKLN1034-2RS-PE INA Axial Angular Contact Bearing 10mm x 34mm x 20mm
ZKLN1034-2RS-PE INA Axial Angular Contact Bearing
This compact axial angular contact bearing is engineered for dynamic applications requiring high accuracy, substantial load capacity, rigidity, and low-friction operation. Ideal for precision screw drive systems and similar demanding mechanical assemblies, this bearing delivers reliable performance in high-speed rotating applications.
Key Capabilities:
- Supports both radial and axial forces simultaneously thanks to the 60 degree contact angle
- Optimized for highly dynamic operating conditions with minimal maintenance requirements
- Double direction load capability for versatile mounting configurations
- Sealed design with lip seals on both sides for protection against contaminants
Design & Installation:
- Direct mounting in standard housing bore
- Outer ring axially located by cover for secure positioning
- Compact dimensions: 10mm bore × 34mm outer diameter × 20mm width
PE Variant Specification:
The PE designation indicates increased tolerances, making this bearing suitable for applications where lower accuracy requirements are acceptable, while still maintaining excellent load-carrying performance.
Typical Applications: Precision screw drives, spindle bearings, automated machinery, and other high-speed, high-precision rotating equipment demanding both radial and axial load support.
