Quick Code: BB-137536

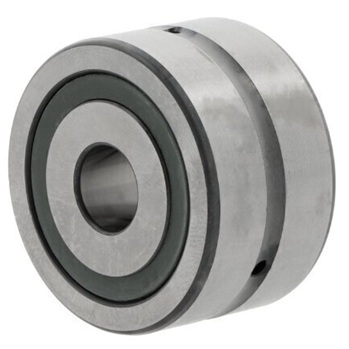

ZKLN0619-2Z-XL INA Axial Angular Contact Bearing 6mm x 19mm x 12mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
CF Series
Solid Stainless Steel Linear Shaft
Buy Now
Product Specification
Brand
INA
Inside Dia
6mm
Outside Dia
19mm
Sealing Type
Shielded
Width
12mm
Reference
ZKLN0619-2Z
Quick Order Code
BB-137536
Product Description
The ZKLN0619-2Z-XL INA Axial Angular Contact Bearing is a precision bearing engineered for highly dynamic operating conditions in screw drives and similar applications requiring exceptional performance characteristics in compact spaces.
Design & Performance:
- 60 degree contact angle enables support of both radial and high axial forces
- High accuracy and load carrying capacity for demanding applications
- Exceptional rigidity and low friction operation
- Maintenance-free or low-maintenance design
Key Features:
- Double direction angular contact design
- Gap seals on both sides for optimal protection against contamination
- Housing bore mounting with axial location via cover
- Ultra-compact dimensions: 6mm bore × 19mm outer diameter × 12mm width
Ideal Applications:
This bearing is particularly suitable for precision screw drive applications and other high-speed, high-load operations where accuracy, rigidity, and reliability are critical. The ultra-compact size makes it ideal for space-constrained installations and miniature assemblies while maintaining superior load handling capability. Typical applications include:
- Precision screw drive systems
- Compact machine tool spindles
- Industrial automation equipment
- Miniature mechanical assemblies
Specifications:
- Brand: INA
- Inside Diameter: 6mm
- Outside Diameter: 19mm
- Width: 12mm
- Sealing Type: Shielded (Gap seals on both sides)
- Design: Double direction angular contact
- Installation: Housing bore mounted with cover axial location
