Quick Code: BB-137477

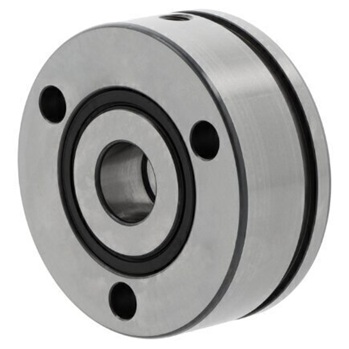

ZKLF50115-2RS-PE INA Axial Angular Contact Bearing 50mm x 115mm x 34mm
Also Try
Angular Contact Bearings
Stainless Steel Angular Contact Bearings
Four Point Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
INA
Inside Dia
50mm
Outside Dia
115mm
Sealing Type
Sealed
Width
34mm
Reference
ZKLF50115-2RS-PE
Quick Order Code
BB-137477
Product Description
ZKLF50115-2RS-PE INA Axial Angular Contact Bearing
This precision axial angular contact bearing is engineered for demanding screw drive applications and other highly dynamic operating conditions. With a 50mm bore and 115mm outer diameter, the ZKLF50115-2RS-PE delivers the high accuracy, load capacity, rigidity and low-friction performance required in critical industrial applications.
Key Performance Features:
- 60 degree contact angle enables support for both radial forces and high axial loads
- Double direction bearing design for bidirectional load support
- Dual lip seals (2RS) on both sides provide sealed, maintenance-free operation
- Direct screw mounting capability on adjacent construction or installation in radial locating bore
Design Specifications:
- PE tolerance class - increased tolerances for applications where lower accuracy is acceptable, reducing costs while maintaining performance
- 34mm width optimized for compact installation
- INA quality engineering and manufacturing standards
Ideal Applications:
This bearing is particularly well-suited for screw drives, ball screw assemblies, and other precision industrial equipment where combined radial and axial load handling is required with minimal maintenance and reliable long-term performance.
